Components [08/2015 - 08/2017]

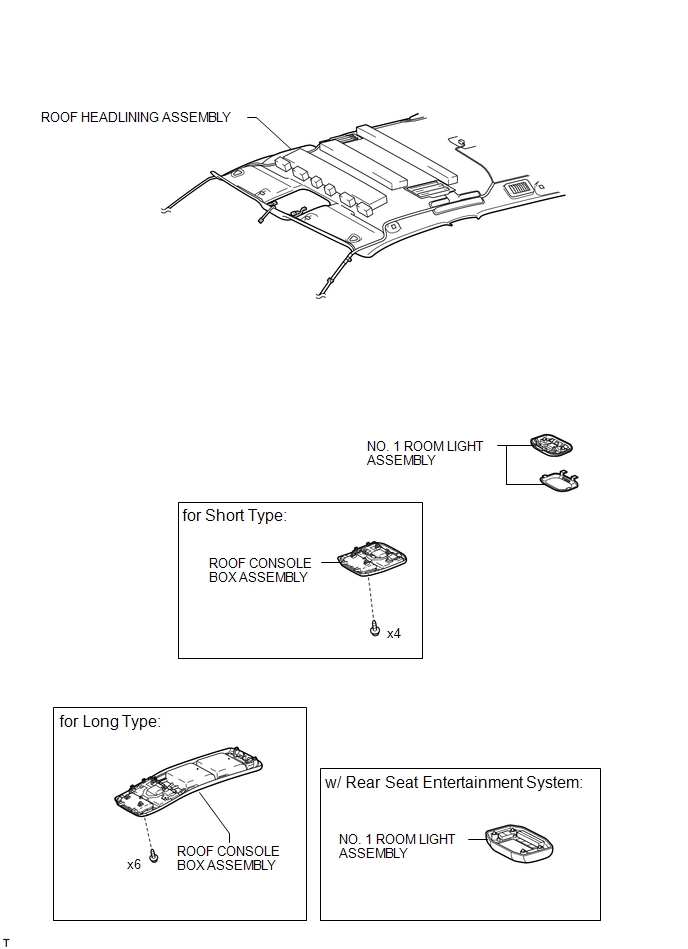

Fig 1: Windshield Glass Replacement Components With Torque Specifications [08/2015 - 08/2017] (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

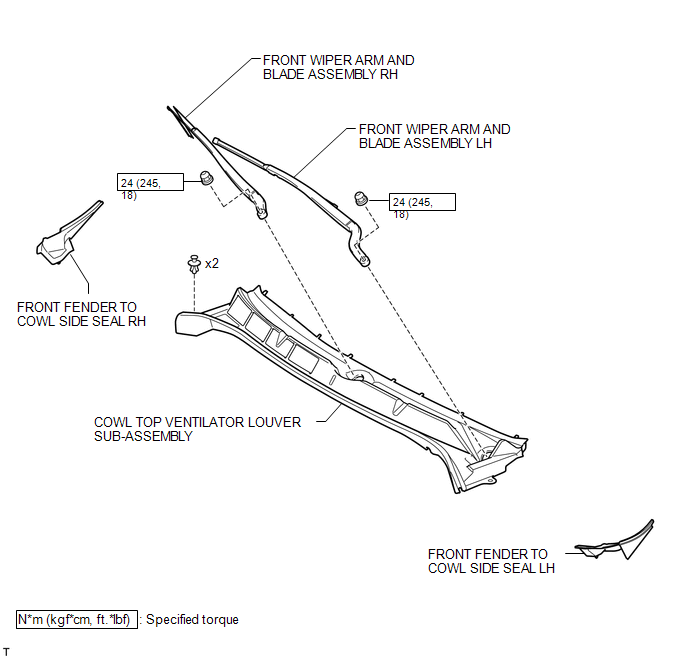

Fig 2: Windshield Glass Replacement Components With Torque Specification [08/2015 - 08/2017]s (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

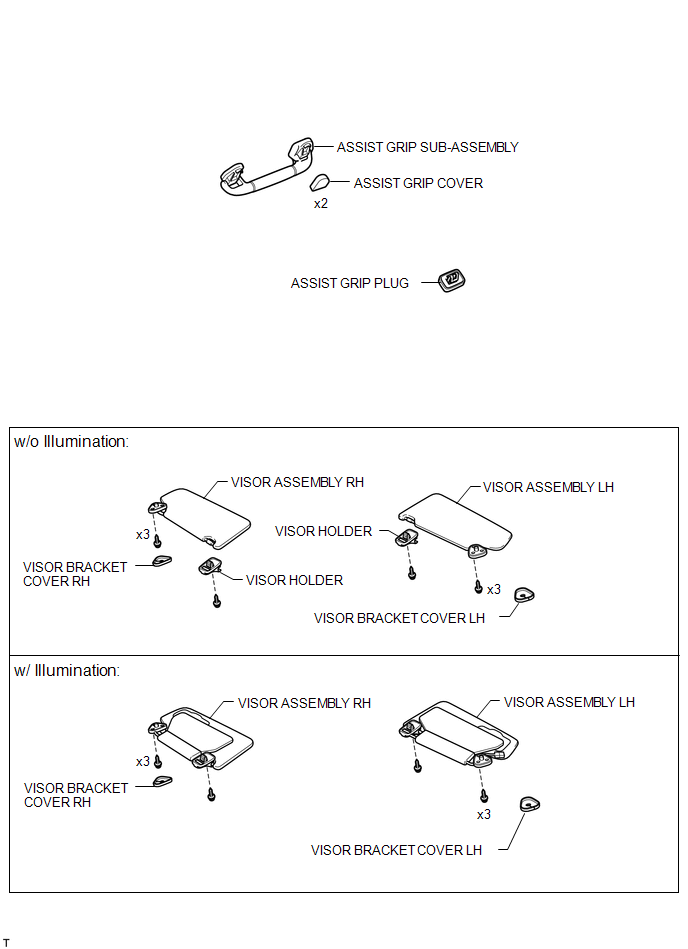

Fig 3: Windshield Glass Replacement Components [08/2015 - 08/2017] (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

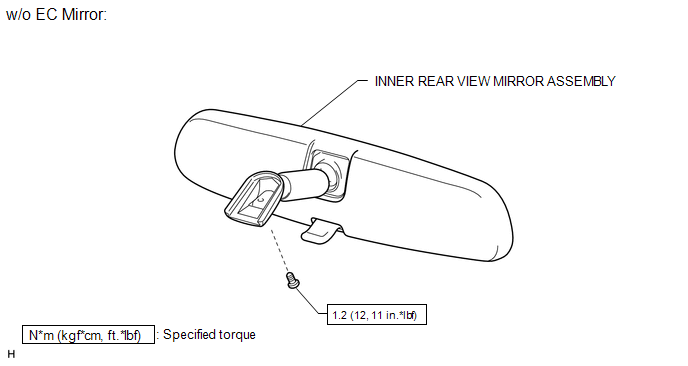

Fig 4: Windshield Glass Replacement Components With Torque Specifications [08/2015 - 08/2017] (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

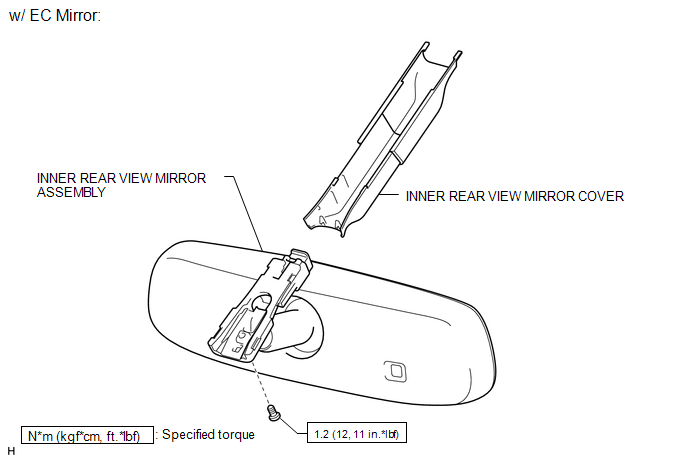

Fig 5: Windshield Glass Replacement Components With Torque Specifications [08/2015 - 08/2017] (5 Of 7)

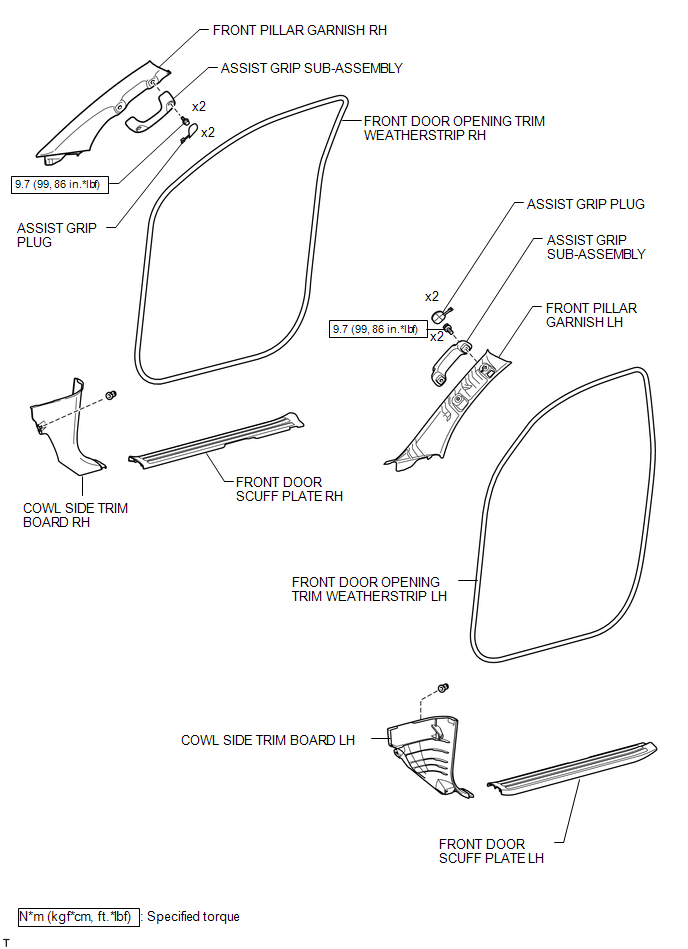

Fig 6: Windshield Glass Replacement Components [08/2015 - 08/2017] (6 Of 7)

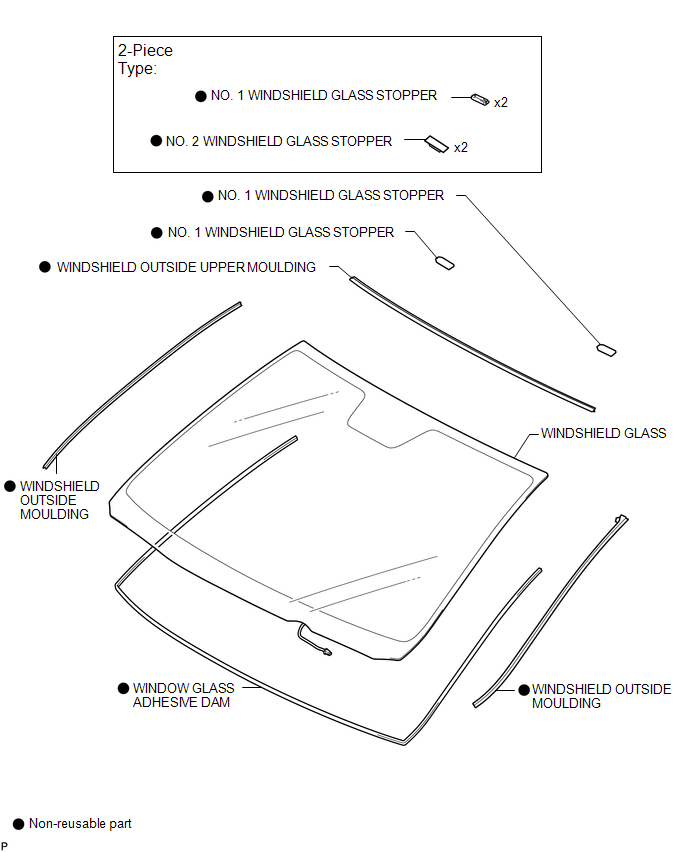

Fig 7: Windshield Glass Replacement Components [08/2015 - 08/2017] (7 Of 7)
