Components [08/2015 - ]

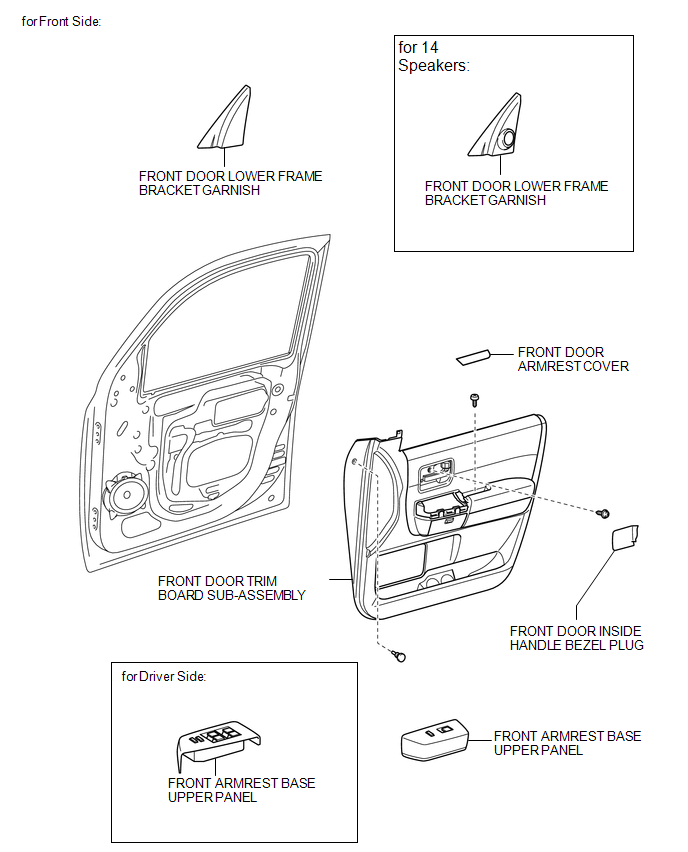

Fig 1: Power Window Regulator Motor Replacement Components (1 Of 5)
GTY568206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

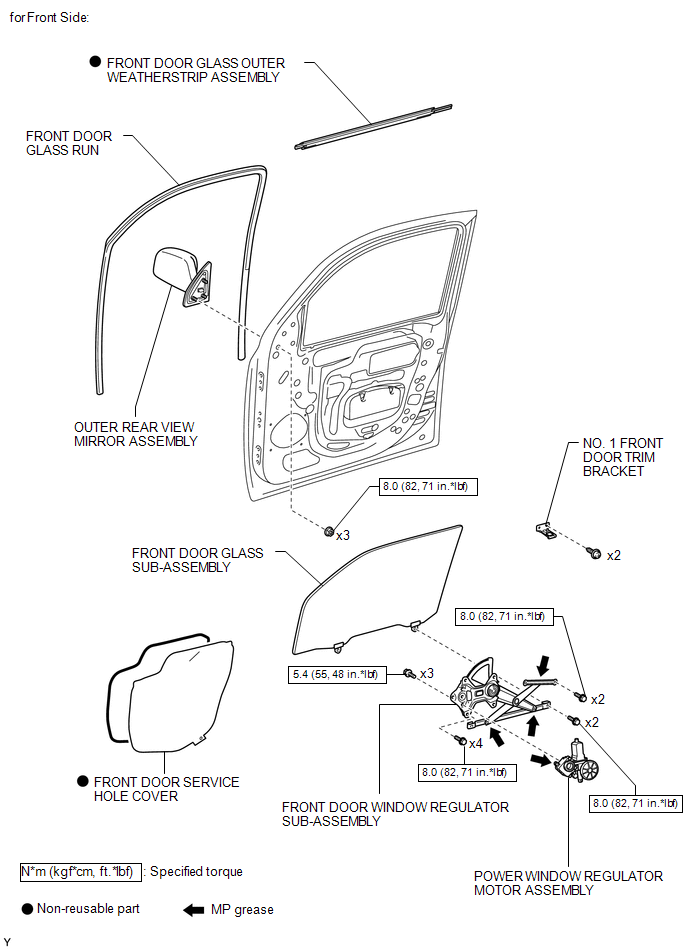

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 5)
GTY585528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

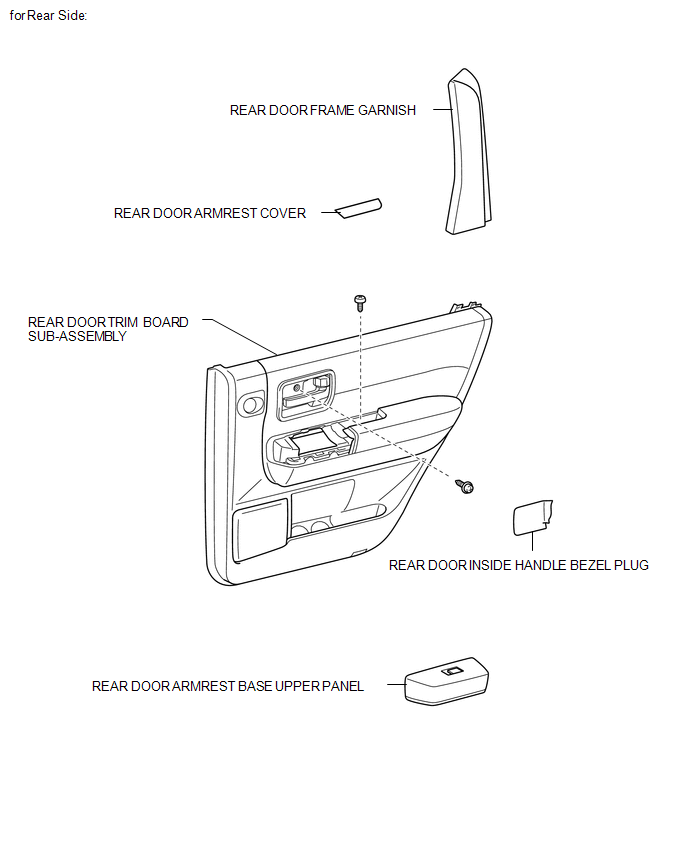

Fig 3: Power Window Regulator Motor Replacement Components (3 Of 5)
GTY242246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

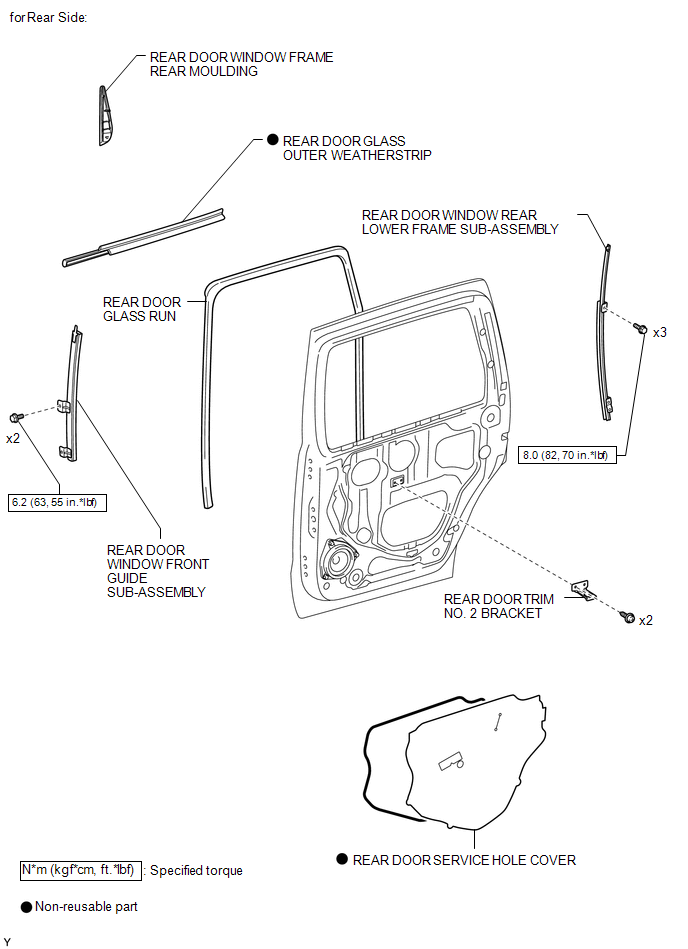

Fig 4: Power Window Regulator Motor Replacement Components With Torque Specifications (4 Of 5)
GTY549918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

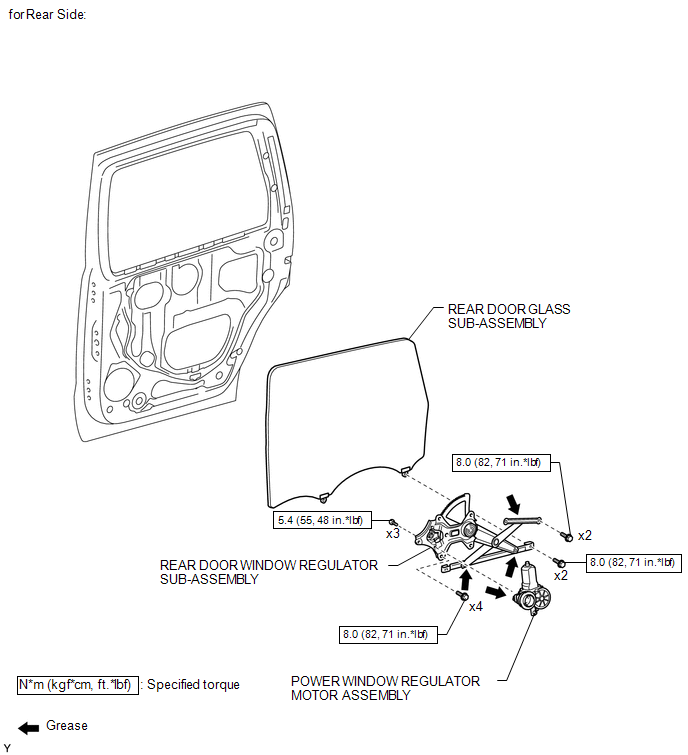

Fig 5: Power Window Regulator Motor Replacement Components With Torque Specifications (5 Of 5)
GTY542088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
