Home >> Toyota >> 2020 >> Sequoia TRD Pro >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnostics - Introduction >> Power Window Control System >> Parts Location [08/2015 - 08/2017] >> Illustration

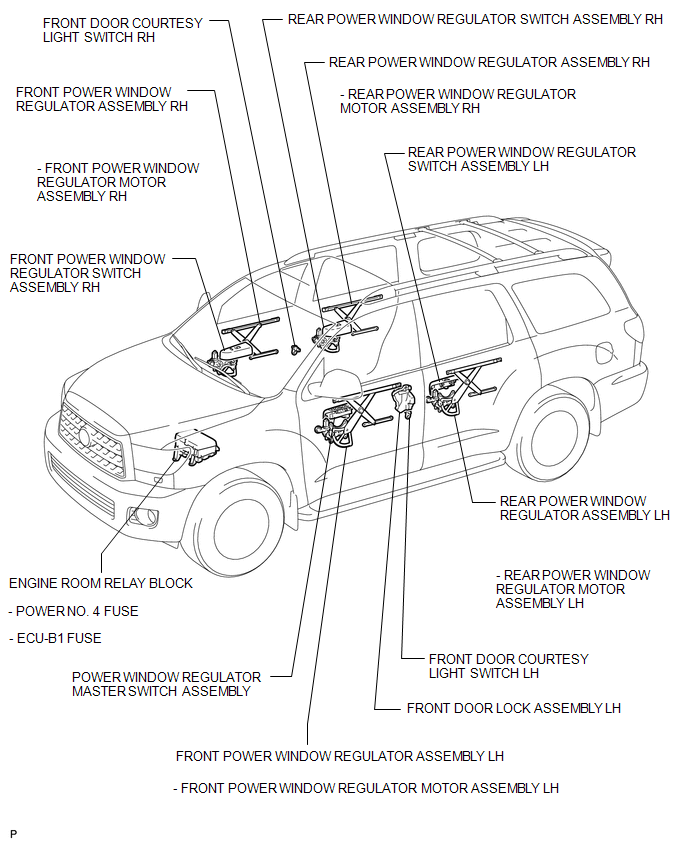

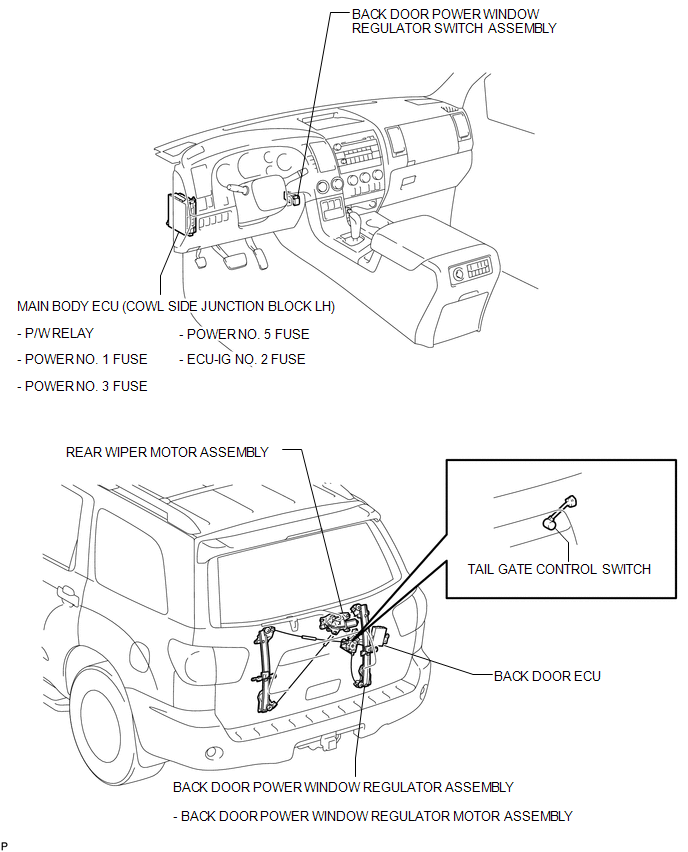

Parts Location [08/2015 - 08/2017]: Illustration

GTY556073

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY587265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
