Components [08/2017 - ]

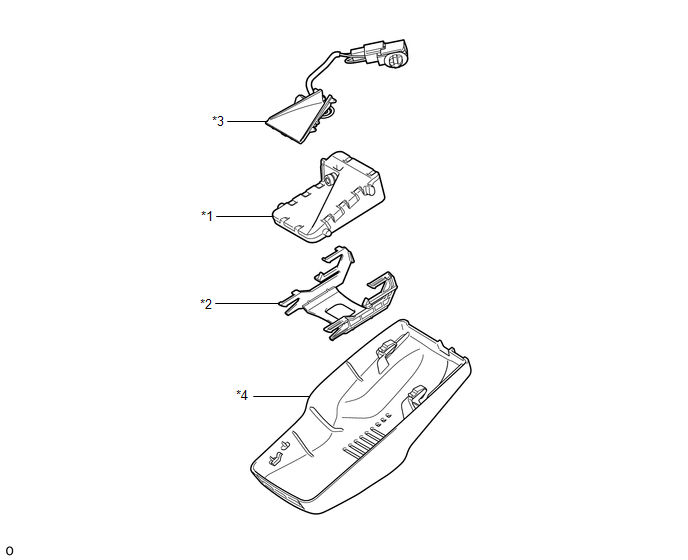

Fig 1: Front Camera Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FORWARD RECOGNITION CAMERA	*2	FORWARD RECOGNITION LATCH
*3	FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY	*4	NO. 1 FORWARD RECOGNITION COVER
