Installation [08/2021 -]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

NOTE:

If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.

Engage the 2 guides.

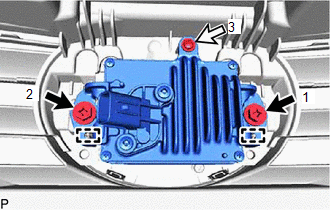

Fig 1: Identifying Millimeter Wave Radar Sensor Assembly Bolts And Screw With Tightening Sequence

	Bolt
	Screw

Tighten the 2 bolts and screw on the millimeter wave radar sensor assembly.
Bolt

Torque: 2.5 N*m (25 kgf*cm, 22 in.*lbf)

NOTE:
Do not overtighten the screw. The radiator grille sub-assembly may be damaged.

HINT:

Tighten the bolts and screw in the order shown in the illustration.
Connect the connector.

INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2
ADJUST MILLIMETER WAVE RADAR SENSOR
1. When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.
  HINT:

  Millimeter wave radar sensor assembly learning can be performed by using either Target Adjustment (Triangle Target) or Target Adjustment (Flat Surface Target) or Driving Adjustment.

  Target Adjustment (Triangle Target): Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [08/2021 -]

  Target Adjustment (Flat Surface Target): Refer to TARGET ADJUSTMENT (FLAT SURFACE TARGET) [08/2021 -]

  Driving Adjustment: Refer to DRIVING ADJUSTMENT [08/2021 -]
