Components [08/2021 -]

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

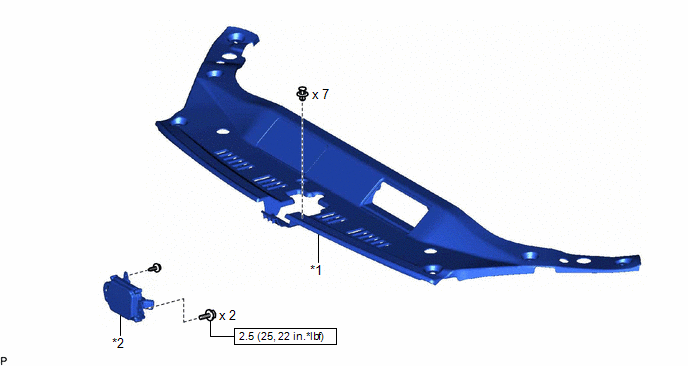

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [08/2021 -]
GTY1026919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOL AIR INTAKE DUCT SEAL *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
