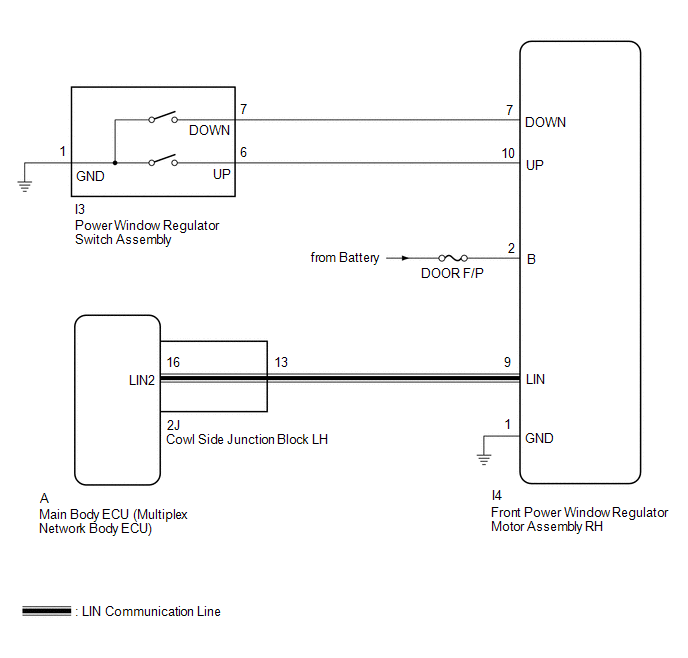

Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2015 - ]: Wiring Diagram

GTY609378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
