Components [01/2019 - 11/2022]

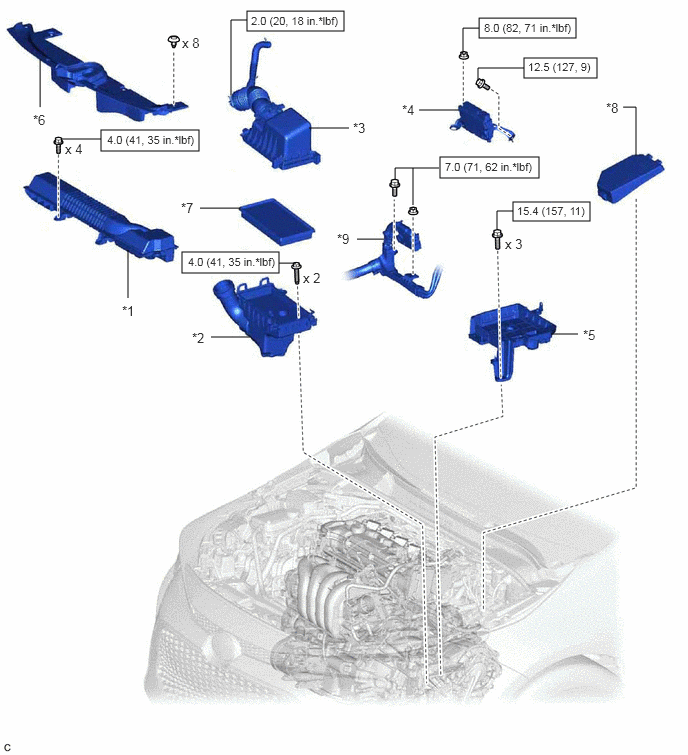

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [01/2019 - 11/2022] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INLET NO. 1 AIR CLEANER | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *4 | ECM |
| *5 | BATTERY CLAMP SUB-ASSEMBLY | *6 | RADIATOR SUPPORT OPENING COVER |
| *7 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *8 | NO. 1 RELAY BLOCK COVER |
| *9 | ENGINE WIRE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

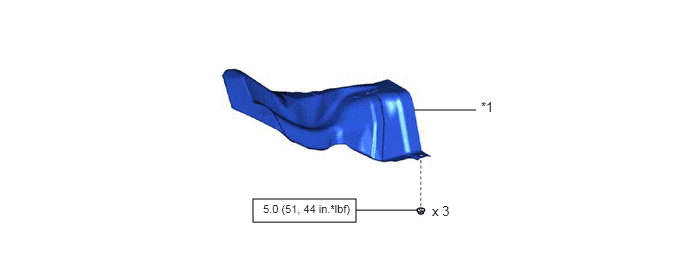

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications [01/2019 - 11/2022] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT NO. 1 FLOOR HEAT INSULATOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

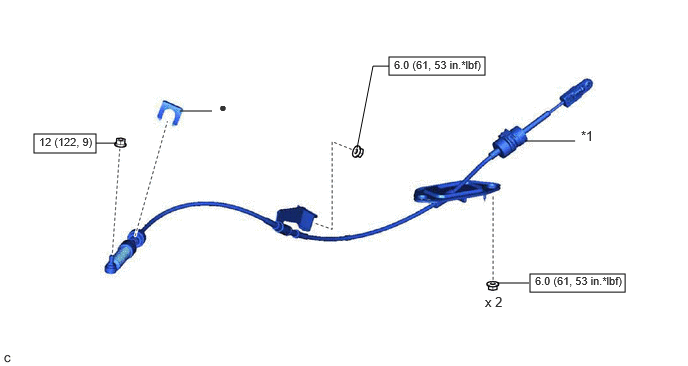

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications [01/2019 - 11/2022] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
