Components [01/2019 - 03/2019]

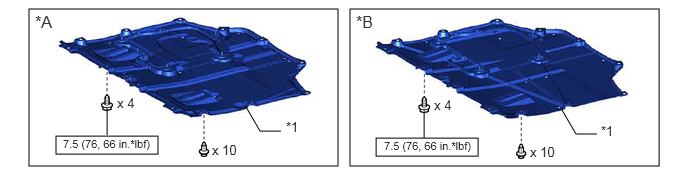

Fig 1: Revolution Sensor Replacement Components With Torque Specifications [01/2019 - 03/2019] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

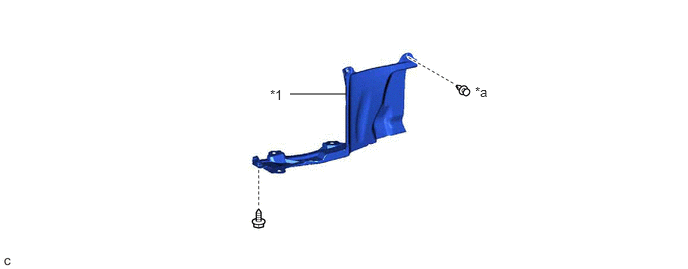

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE UNDER COVER LH | - | - |
| *a | Type A: x 4 Type B: x 5 |
- | - |

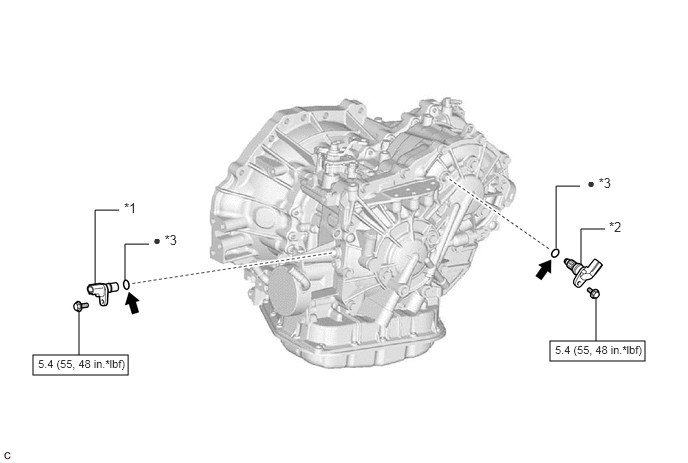

Fig 3: Revolution Sensor Replacement Components With Torque Specifications [01/2019 - 03/2019] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION REVOLUTION SENSOR (NIN) | *2 | TRANSMISSION REVOLUTION SENSOR (NOUT) |
| *3 | O-RING | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine CVT fluid FE | - | - |
