Components [09/2022 - ]

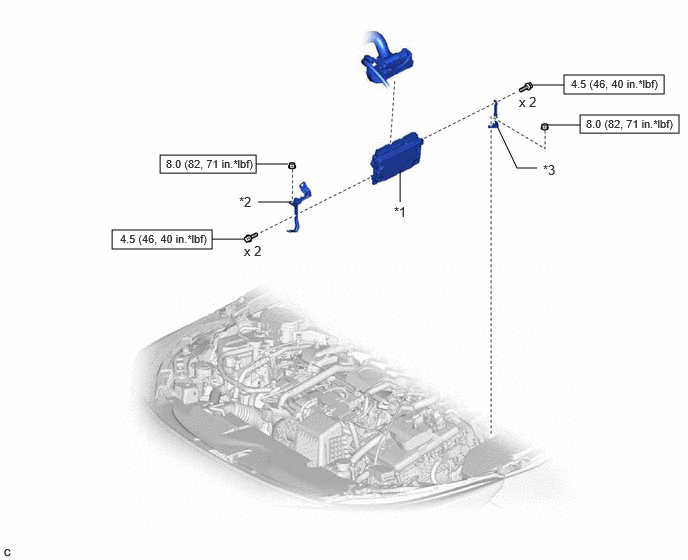

Fig 1: ECM Replacement Components With Torque Specifications [09/2022 - ]
GTY1107183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 NO. 1 ECM BRACKET
*3 NO. 2 ECM BRACKET - -
N.m (kgf/cm, ft.lbf): Specified torque - -
