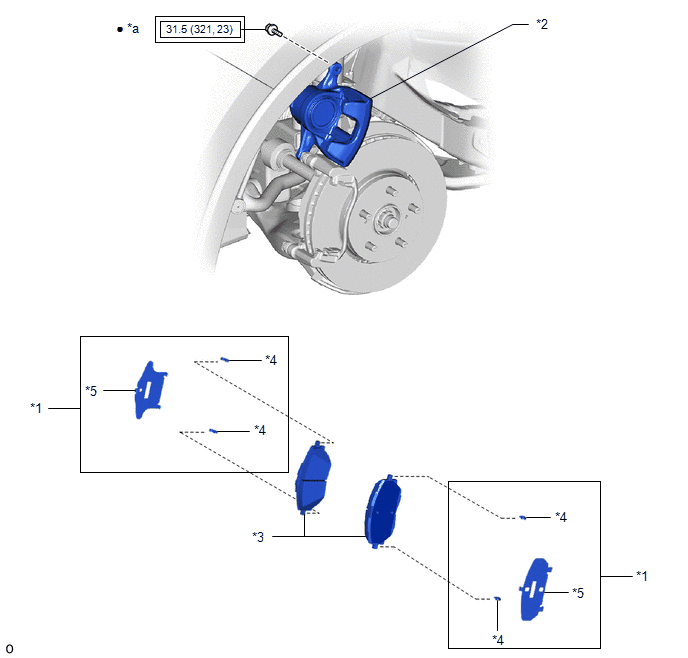

Components [02/2017 - 09/2019]
| Callout | Description | Callout | Description |
| *1 | FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT | *2 | FRONT DISC BRAKE CYLINDER ASSEMBLY |
| *3 | FRONT DISC BRAKE PAD | *4 | FRONT BRAKE PAD RADIAL SPRING |
| *5 | FRONT DISC BRAKE ANTI-SQUEAL SHIM | - | - |
| *a | refer to the following for non-reusable parts See step 2 |
- | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
