Back-Up Light Bulb
>>
Components [02/2017 - ]
Components [02/2017 - ]

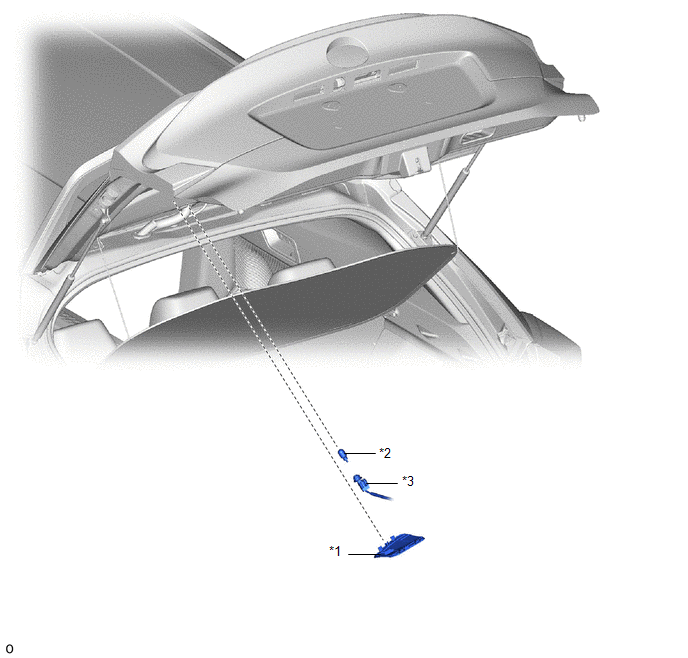

Fig 1: Back-Up Light Bulb Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BACK DOOR SERVICE HOLE COVER LH
*2
BACK UP LIGHT BULB
*3
BACK UP LIGHT SOCKET AND WIRE
-
-
