Removal [12/2015 - ]: Procedure
- REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 15 [12/2015 - 11/2017] Refer to PROCEDURE - Step 15 [11/2017 - ]
- REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 3
- REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 17 [12/2015 - 11/2017] Refer to PROCEDURE - Step 17 [11/2017 - ]
- REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 19 [12/2015 - 11/2017] Refer to PROCEDURE - Step 19 [11/2017 - ]
- REMOVE INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 20 [12/2015 - 11/2017] Refer to PROCEDURE - Step 20 [11/2017 - ]

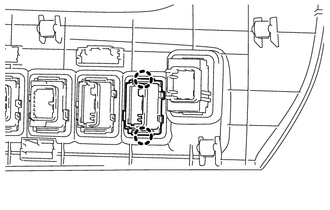

- REMOVE VSC OFF SWITCH
