Engine Coolant Temperature Sensor
>>
Components [11/2018 - 02/2019]
Components [11/2018 - 02/2019]

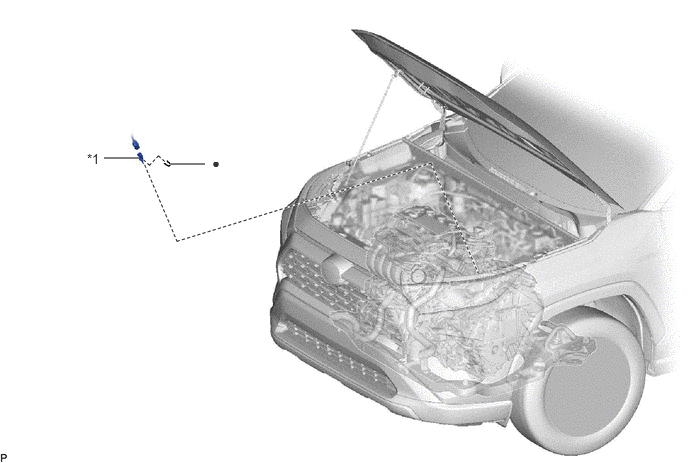

Fig 1: Engine Coolant Temperature Sensor Replacement Components [11/2018 - 02/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
ENGINE COOLANT TEMPERATURE SENSOR
-
-
•
Non-reusable part
-
-
