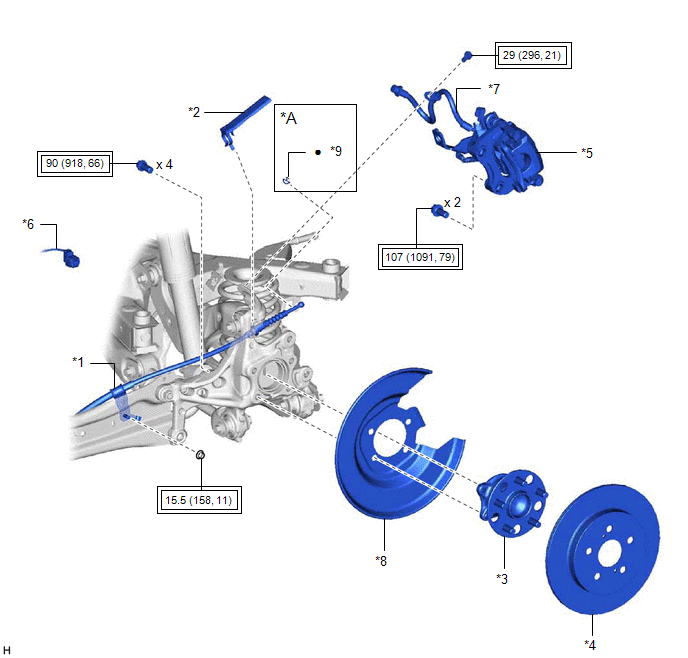

Components [09/2016 - 01/2018]
| Callout | Description | Callout | Description |
| *A | w/ Clip | - | - |
| *1 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *2 | PARKING BRAKE LEVER PROTECTOR |
| *3 | REAR AXLE HUB AND BEARING ASSEMBLY | *4 | REAR DISC |
| *5 | REAR DISC BRAKE CALIPER ASSEMBLY | *6 | SKID CONTROL SENSOR WIRE |
| *7 | REAR FLEXIBLE HOSE | *8 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY |
| *9 | CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
