Components [11/2015 - ]

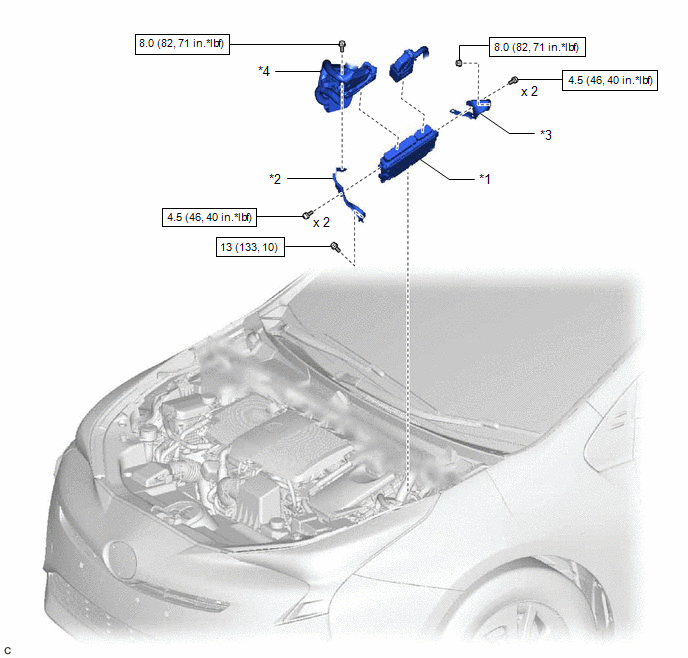

Fig 1: ECM Replacement Components With Torque Specifications
GTY604321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 NO. 1 ECM BRACKET
*3 NO. 2 ECM BRACKET *4 ENGINE WIRE
N.m (kgf.cm, ft./lbf): Specified torque - -
