Back-Up Battery
>>
Components [11/2015 - 11/2017]
Components [11/2015 - 11/2017]

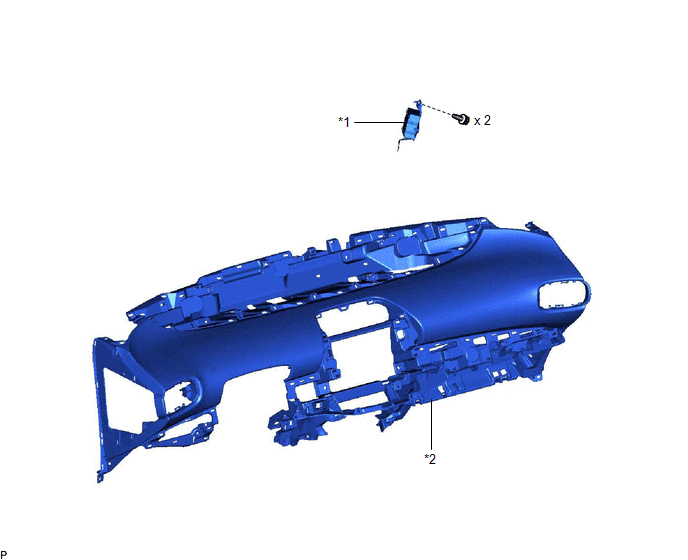

Fig 1: Back-Up Battery Replacement Components [11/2015 - 11/2017] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BACK-UP BATTERY WITH BRACKET
*2
LOWER INSTRUMENT PANEL SUB-ASSEMBLY

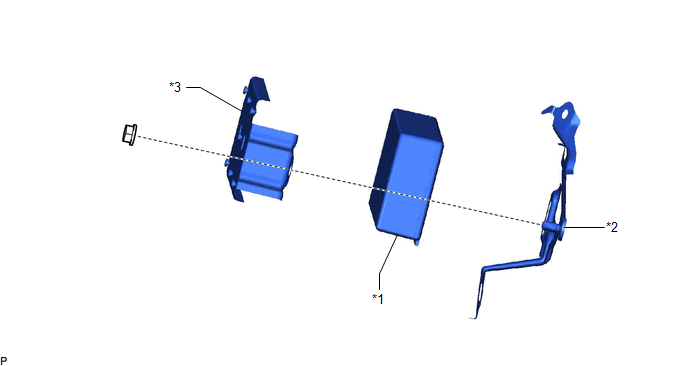

Fig 2: Back-Up Battery Replacement Components [11/2015 - 11/2017] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BACK-UP BATTERY
*2
NO. 3 TELEPHONE BRACKET
*3
NO. 4 TELEPHONE BRACKET
-
-
