Components [09/2024 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

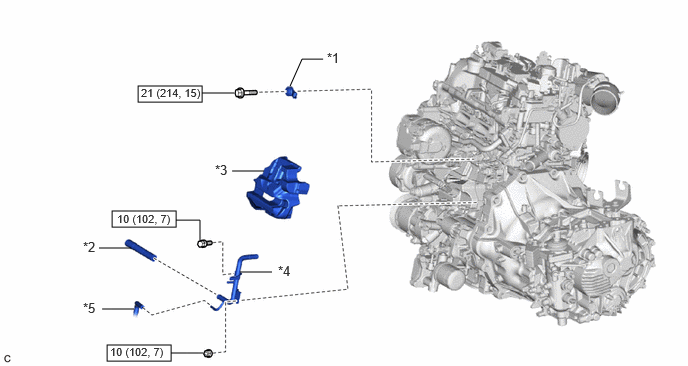

Fig 1: Knock Sensor Replacement Components With Torque Specifications [09/2024 - ]
GTY1251984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 KNOCK CONTROL SENSOR *2 NO. 4 WATER BY-PASS HOSE
*3 NO. 2 CYLINDER BLOCK INSULATOR *4 NO. 2 WATER BY-PASS PIPE
*5 NO. 6 WATER BY-PASS HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
