Front Turn Signal Light Bulb
>>
Components [02/2017 - ]
Components [02/2017 - ]

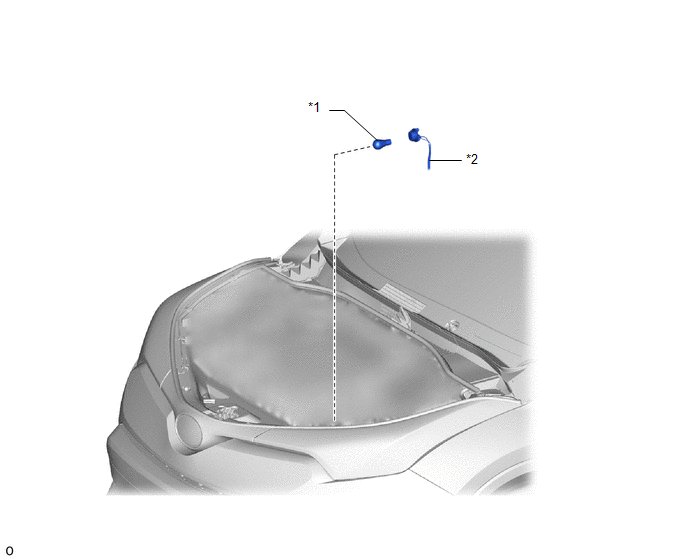

Fig 1: Front Turn Signal Light Bulb Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT TURN SIGNAL LIGHT BULB
*2
FRONT TURN SIGNAL LIGHT SOCKET AND WIRE SUB-ASSEMBLY
