Installation [02/2017 - ]: Procedure

  1. INSTALL BACK UP LIGHT BULB

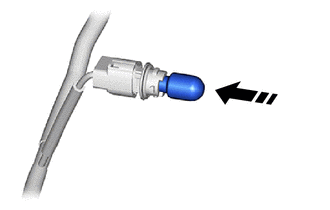

    1. Install the back up light bulb to the back up light socket and wire as shown in the illustration.
      GTY770090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

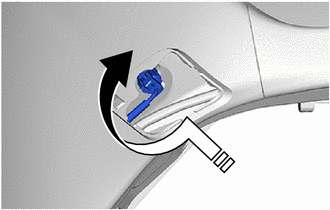

    2. Turn the back up light socket and wire with the back up light bulb as shown in the illustration to connect them as a unit.
      GTY752563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL BACK DOOR SERVICE HOLE COVER

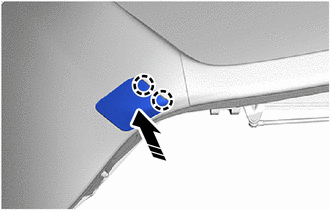

    1. Engage the claws to install the back door service hole cover.
      GTY766484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
