Components [02/2017 - ]

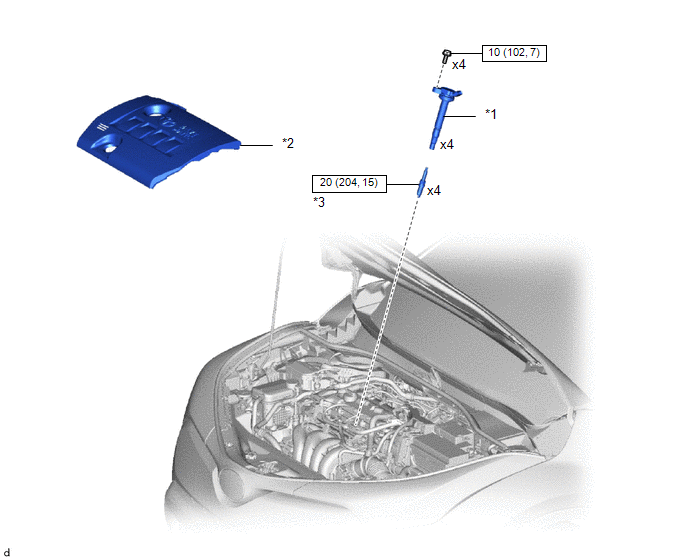

Fig 1: 3ZR-FAE Spark Plug Replacement Components With Torque Specifications
GTY757542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 NO. 2 CYLINDER HEAD COVER
*3 SPARK PLUG - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
