Removal [06/2016 - 03/2017]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 11

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Large Ornament Panel)

    Refer to PROCEDURE - Step 5

  3. REMOVE INSTRUMENT PANEL ORNAMENT (w/ Large Ornament Panel)

    Refer to PROCEDURE - Step 4

  4. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  5. REMOVE UPPER INSTRUMENT PANEL METER ORNAMENT

    Refer to PROCEDURE - Step 14

  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 13

  8. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 14

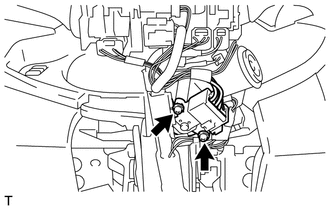

  9. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY
    1. Disconnect the connector.
      GTY390573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws, and remove the ignition switch.
