Removal [03/2017 - ]: Procedure

  1. DISCONNECT BATTERY NEGATIVE TERMINAL

    Refer to PROCEDURE - Step 3

  2. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 1

  3. REMOVE ENGINE SWITCH

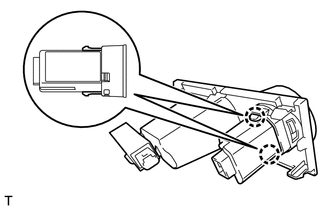

    1. Disengage the 2 claws and remove the engine switch.
      GTY724076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
