Components [06/2016 - ]

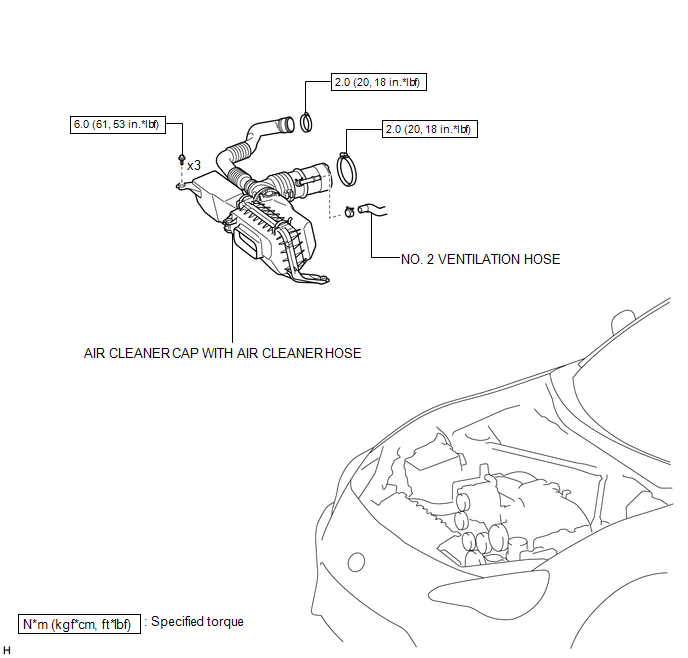

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 5)
GTY699428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

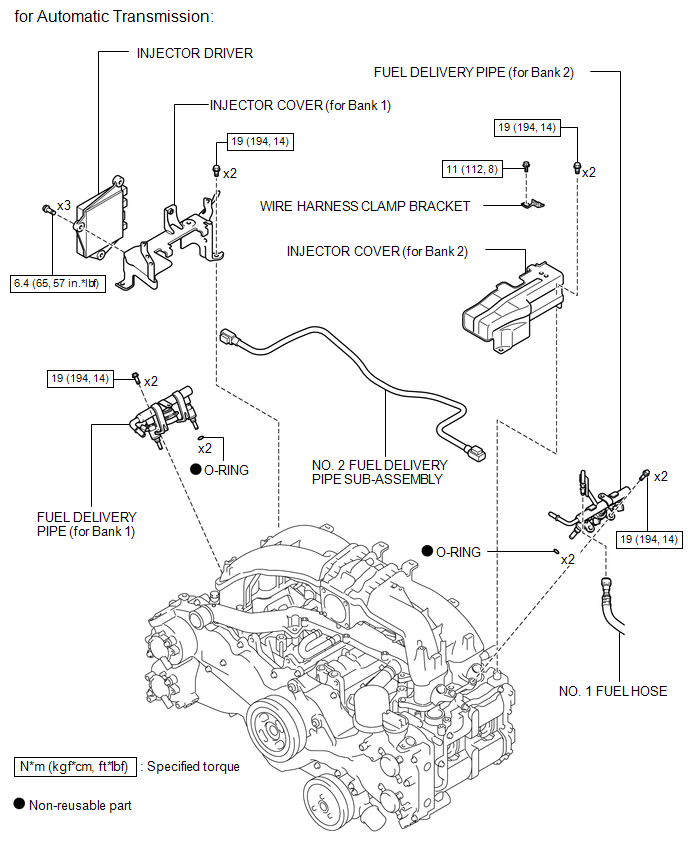

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 5)
GTY726944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

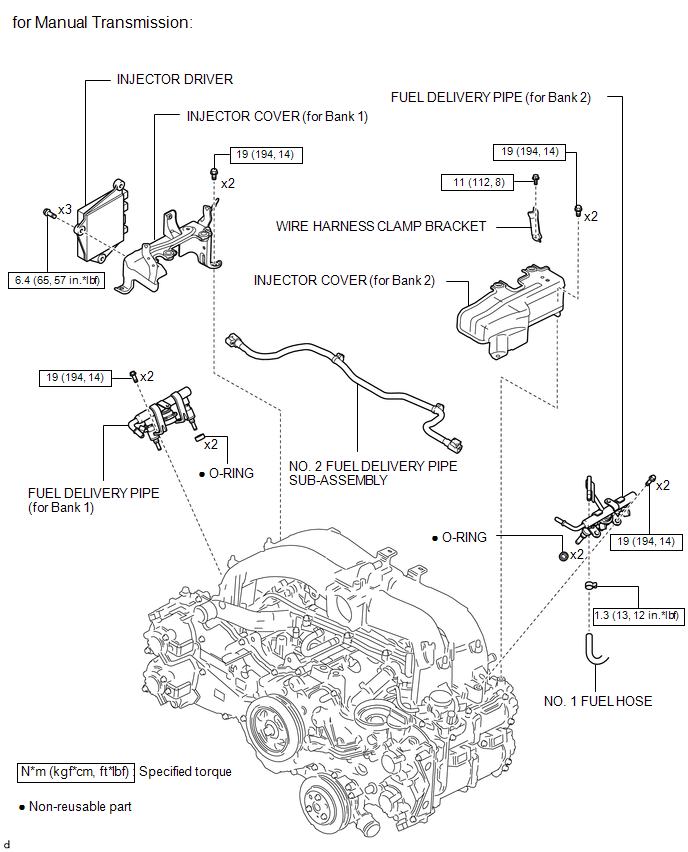

Fig 3: Intake Manifold Replacement Components With Torque Specifications (3 Of 5)
GTY721064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

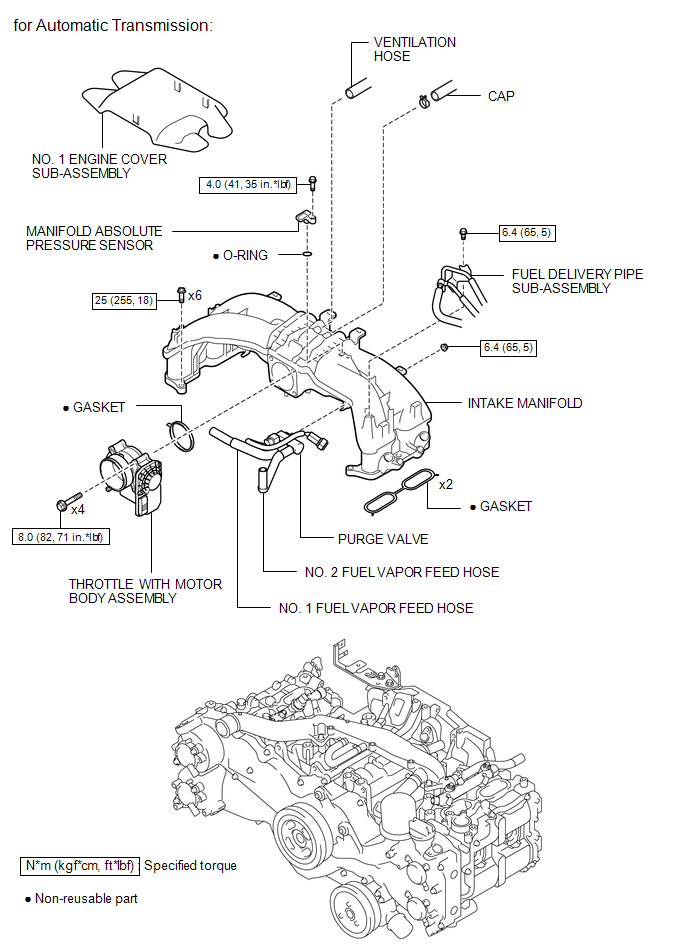

Fig 4: Intake Manifold Replacement Components With Torque Specifications (4 Of 5)
GTY712617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

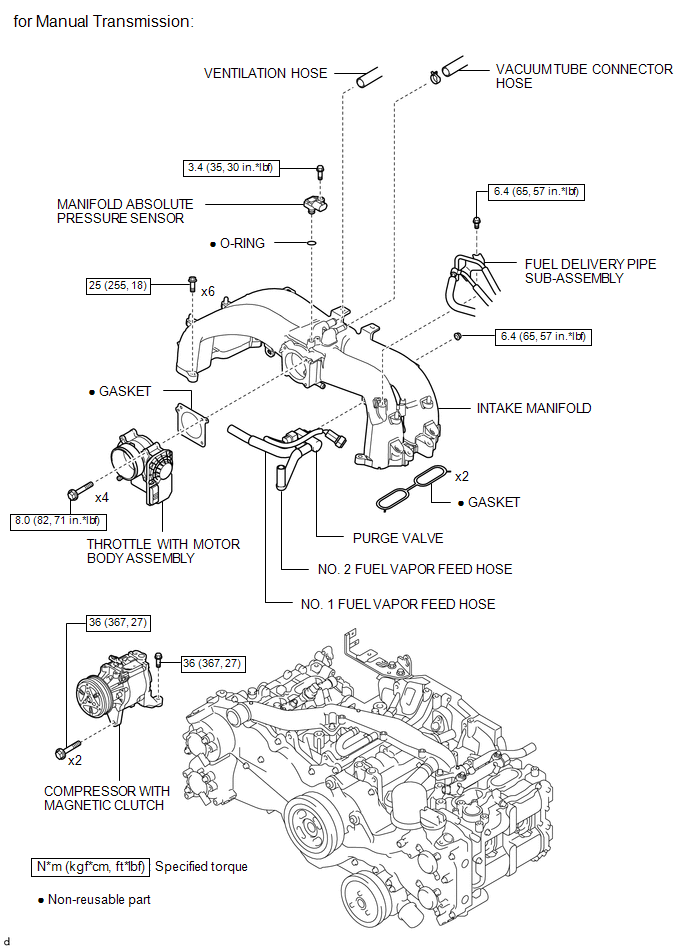

Fig 5: Intake Manifold Replacement Components With Torque Specifications (5 Of 5)
GTY726530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
