Installation [06/2016 - ]: Procedure

  1. INSTALL PCV VALVE SUB-ASSEMBLY

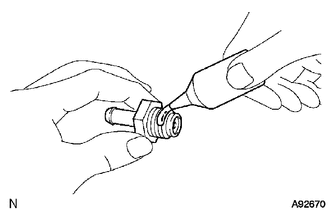

    1. Apply adhesive to 2 or 3 threads of the PCV valve sub-assembly.
      GTY453569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324, 1215 or equivalent

    2. Using a 19 mm deep socket wrench, install the PCV valve sub-assembly.

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

    3. Connect the ventilation hose.
  2. INSTALL INTAKE MANIFOLD

    (Refer to INSTALLATION [06/2016 - ] )
