Ignition Coil: Installation: Procedure

  1. INSTALL IGNITION COIL
    1. Install the ignition coil.

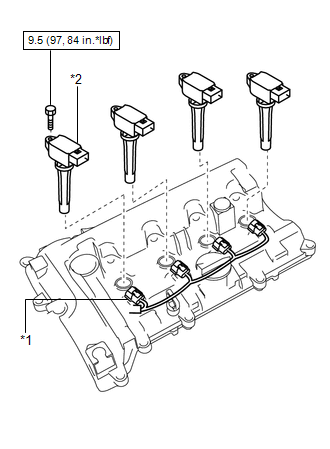

      GTY484511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Connector
      *2 Ignition Coil
      N*m (kgf*cm, ft.*lbf): Specified torque

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

    2. Install the connector.
    3. Install the plug hole plate.

      Refer to INSTALLATION

    4. Disconnect the negative battery cable.

      Refer to INSTALLATION
