Camshaft Position Sensor: Removal: Procedure

  1. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the negative battery cable.

      Refer to REMOVAL

    2. Remove the plug hole plate.

      Refer to REMOVAL

    3. Remove the intake manifold.

      Refer to REMOVAL

    4. Disconnect the CMP sensor connector.
    5. Remove the bolt.

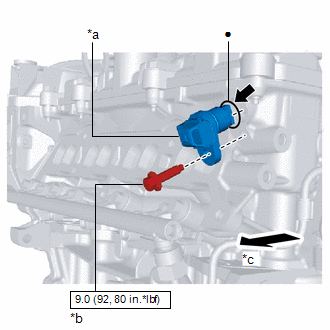

      GTY491990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a CMP Sensor
      *b Bolt
      *c Vehicle Front
      • Non-reusable part
      N*m (kgf*cm, ft.*lbf): Specified torque
      Oil
    6. Remove the CMP sensor.
