Components [11/2015 - 12/2018]

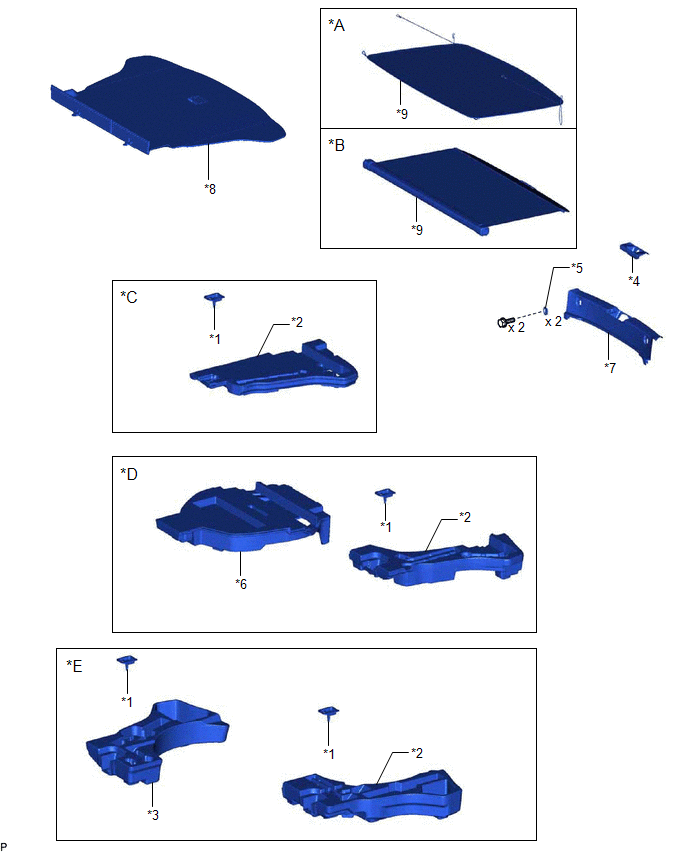

Fig 1: Door Control Receiver Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Blind Spot Monitor System	*B	w/ Blind Spot Monitor System
*C	w/o Spare Tire	*D	w/ Compact Spare Tire
*E	w/ Full Size Spare Tire	-	-
*1	DECK BOARD RETAINER	*2	DECK FLOOR BOX LH
*3	DECK FLOOR BOX RH	*4	DECK TRIM SERVICE HOLE COVER
*5	LUGGAGE HOLD BELT STRIKER ASSEMBLY	*6	REAR DECK FLOOR BOX
*7	REAR DECK TRIM COVER	*8	REAR NO. 1 FLOOR BOARD
*9	TONNEAU COVER ASSEMBLY	-	-

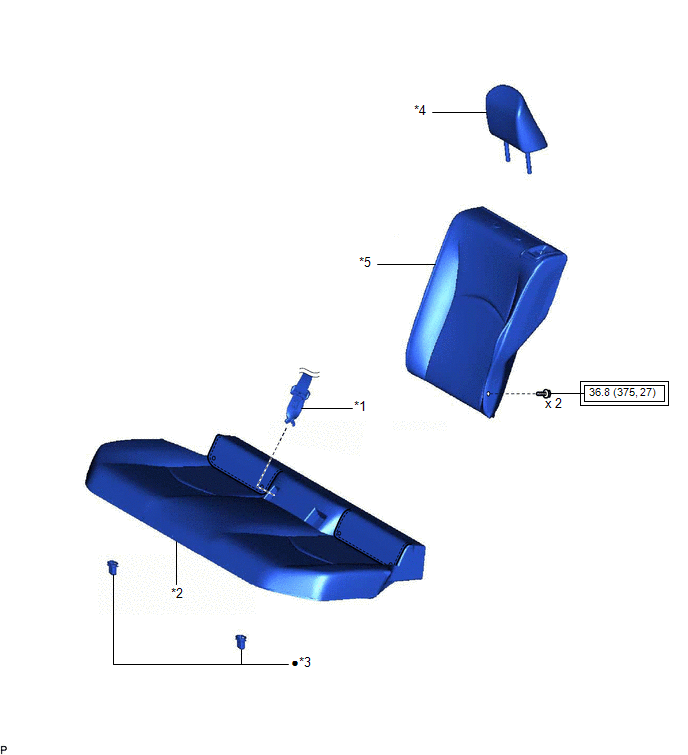

Fig 2: Door Control Receiver Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR CENTER SEAT OUTER BELT ASSEMBLY	*2	REAR SEAT CUSHION ASSEMBLY
*3	REAR SEAT CUSHION LOCK HOOK	*4	REAR SEAT HEADREST ASSEMBLY
*5	REAR SEATBACK ASSEMBLY LH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)	•	Non-reusable part

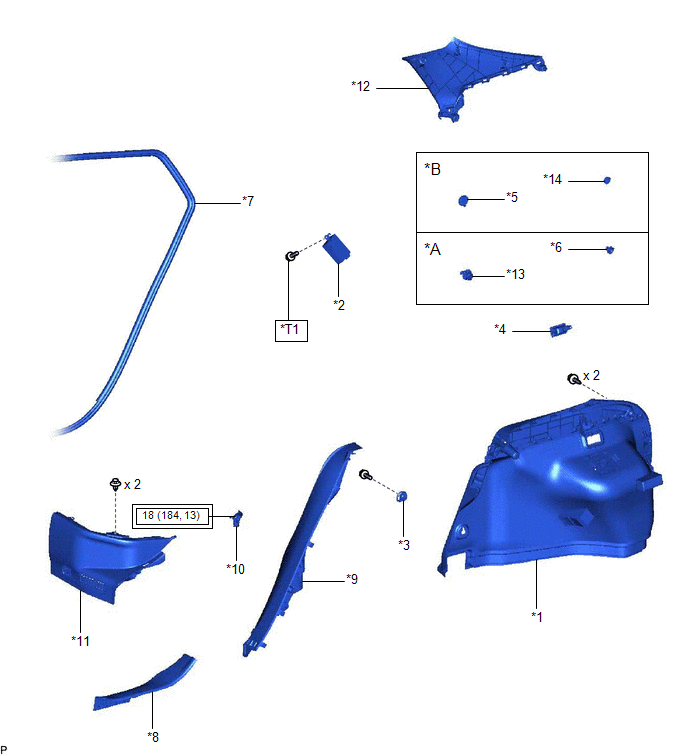

Fig 3: Door Control Receiver Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*A	w/o Blind Spot Monitor System	*B	w/ Blind Spot Monitor System
*1	DECK TRIM SIDE PANEL ASSEMBLY LH	*2	ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER
*3	LUGGAGE HOLD BELT STRIKER ASSEMBLY	*4	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
*5	NO. 1 TONNEAU COVER HOLDER CAP	*6	NO. 2 ROPE HOOK
*7	REAR DOOR OPENING TRIM WEATHERSTRIP LH	*8	REAR DOOR SCUFF PLATE LH
*9	REAR SEAT SIDE GARNISH LH	*10	REAR SEATBACK HINGE SUB-ASSEMBLY LH
*11	REAR UNDER SIDE COVER LH	*12	ROOF SIDE INNER GARNISH ASSEMBLY LH
*13	ROPE HOOK	*14	TONNEAU COVER HOOK A
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)		N.m (kgf.cm, ft./lbf): Specified torque
*T1	for Type A: 8.3 (85, 73 in./lbf) for Type B: 10 (102, 7)	-	-
