Components [09/2016 - 07/2020]

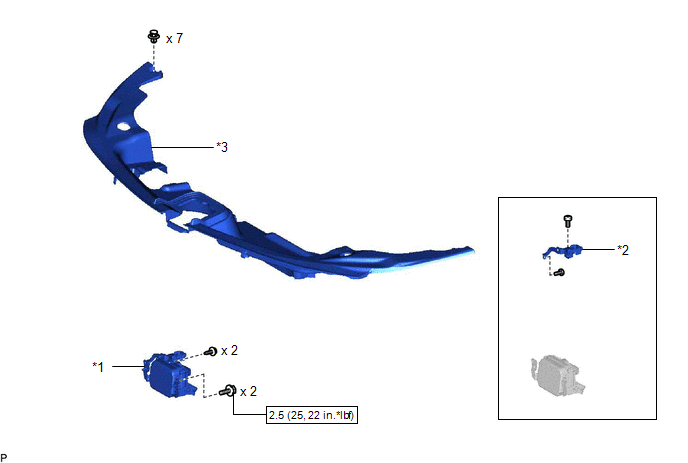

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications
GTY687619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MILLIMETER WAVE RADAR SENSOR ASSEMBLY *2 NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET
*3 RADIATOR SUPPORT OPENING COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
