Components [09/2016 - 07/2020]

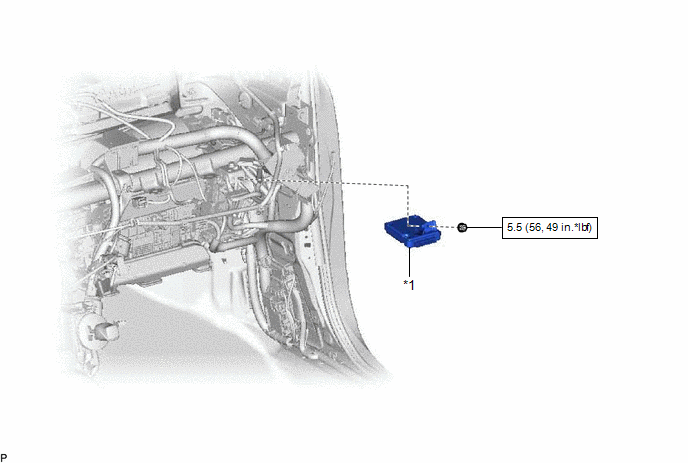

Fig 1: Driving Support ECU Replacement Components With Torque Specifications
GTY597834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRIVING SUPPORT ECU ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
