Inspection [10/2017 - ]: Procedure

  1. INSPECT OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)
    1. Check the resistance.
      1. Measure the resistance according to the value(s) in the table below.

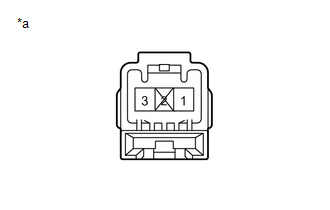

        GTY743948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Occupant Detection Sensor (Separate Type Front Seat Cushion Pad))

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 - 3 Front passenger side seat occupied Below 100 Ω
        1 - 3 Front passenger side seat not occupied 1 MΩ or higher

        If the result is not as specified, replace the occupant detection sensor (separate type front seat cushion pad).
