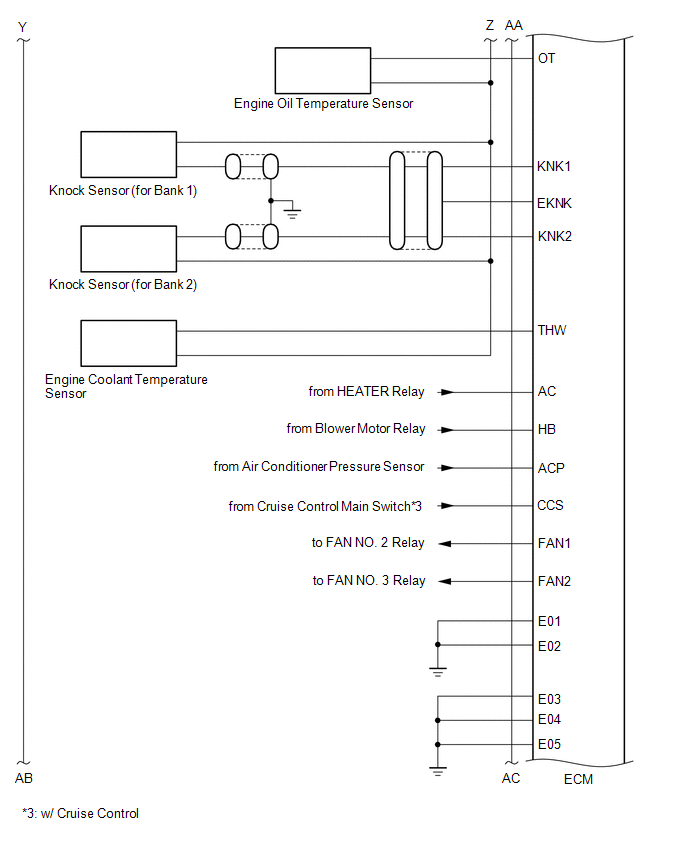

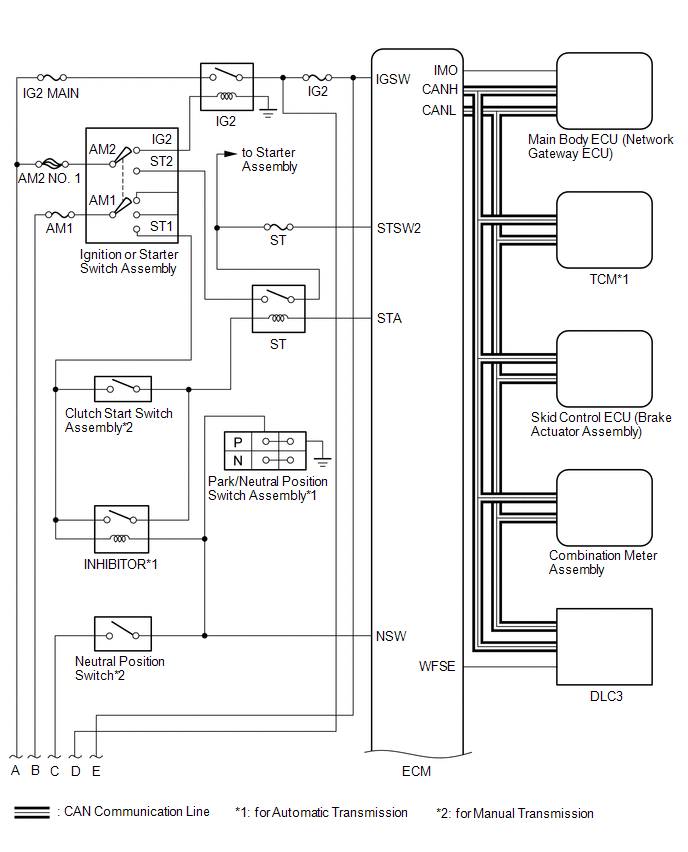

Home >> Toyota >> 2018 >> 86 GT, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Diagnostics - Introduction (1 Of 2) >> SFI System >> System Diagram [06/2016 - 03/2017] >> System Diagram [06/2016 - 03/2017]
