Installation [08/2015 - ]: Procedure
- INSTALL FUEL TANK TO FILLER PIPE HOSE

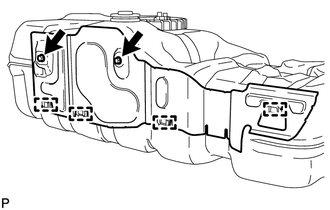

- INSTALL NO. 3 FUEL TANK PROTECTOR
- INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
- Apply a light coat of gasoline or grease to a new gasket and install the gasket to the fuel tank.

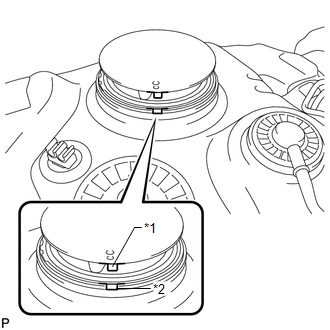

- Install the fuel suction with pump and gauge tube into the fuel tank.TEXT IN ILLUSTRATION

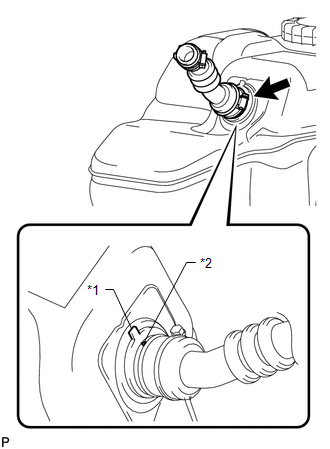

*1 Protrusion *2 Groove HINT:
Align the protrusion of the fuel suction with pump and gauge tube with the groove of the fuel tank.
NOTE:Be careful not to bend the arm of the fuel sender gauge.
- Put the new retainer on the fuel tank. While holding the fuel suction with pump and gauge tube, tighten the retainer one complete turn by hand.

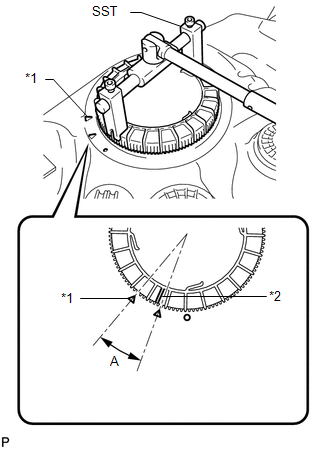

- Using SST, tighten the retainer until the mark on the retainer is within range A on the fuel tank, as shown in the illustration.
- SST: 09808-14020
TEXT IN ILLUSTRATION*1 Fuel Tank Side Mark *2 Retainer Side Mark HINT:
Fit the tips of SST onto the ribs of the retainer.

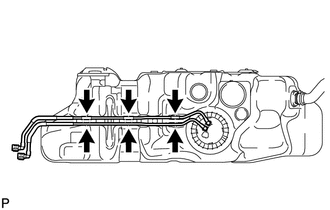

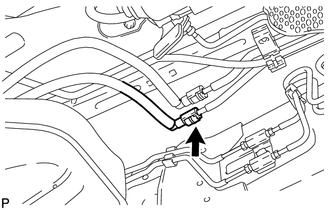

- INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY AND FUEL RETURN TUBE SUB-ASSEMBLY
- Install the fuel tank main tube and fuel return tube with the 2 fuel tube joint clips.NOTE:
- Check that there are no scratches or foreign objects on the connecting parts.
- Check that the fuel tube joints are inserted securely.
- Check that the fuel tube joint clips are on the collars of the fuel tube joints.
- After installing the fuel tube joint clips, check that the fuel tube joints cannot be pulled off.TEXT IN ILLUSTRATION
*1 Fuel Tube Joint *2 O-Ring *3 Fuel Tube *4 Fuel Tube Joint Clip *a CORRECT *b INCORRECT
- Check that there are no scratches or foreign objects on the connecting parts.
- Install the fuel tank main tube and fuel return tube to the fuel tank.
- Install the fuel tank main tube and fuel return tube with the 2 fuel tube joint clips.

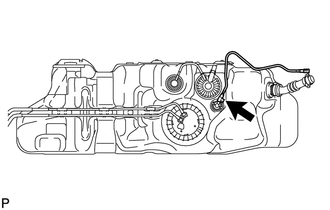

- INSTALL FUEL TANK BREATHER TUBE SUB-ASSEMBLY
- Install the fuel tank breather tube (Refer to PRECAUTION [08/2015 - ]
).
- Install the fuel tank breather tube (Refer to PRECAUTION [08/2015 - ]
).

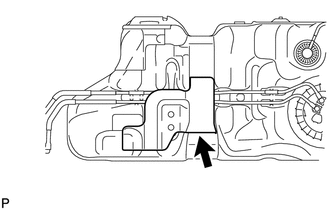

- INSTALL NO. 1 FUEL TANK PROTECTOR

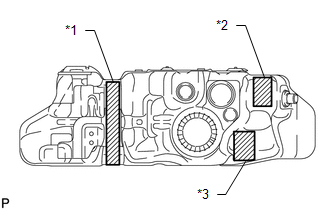

- INSTALL FUEL TANK CUSHION
- INSTALL FUEL TANK SUB-ASSEMBLY
- Set the fuel tank on a transmission jack and lift up the transmission jack.NOTE:
Do not allow the fuel tank to contact the vehicle, especially the differential.

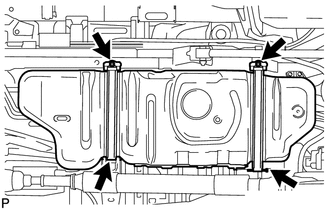

- Install the 2 fuel tank bands with the 2 pins and 2 clips.
- Connect the 2 fuel tank bands with the 2 bolts.
Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)
- Set the fuel tank on a transmission jack and lift up the transmission jack.
- CONNECT FUEL TANK TO FILLER PIPE HOSE

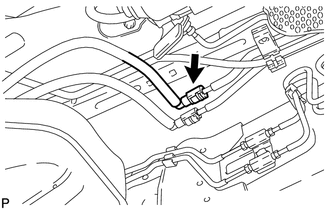

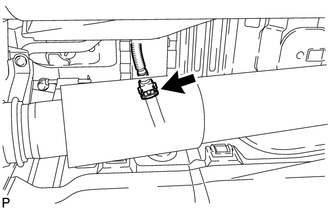

- Connect the fuel tank to filler pipe hose to the filler pipe.
- CONNECT FUEL TANK BREATHER TUBE SUB-ASSEMBLY
- Connect the fuel tank breather tube (Refer to PRECAUTION [08/2015 - ] ).
- CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
- Connect the fuel tank breather tube (Refer to PRECAUTION [08/2015 - ]
).
- Connect the fuel tank breather tube (Refer to PRECAUTION [08/2015 - ]
).
- CONNECT FUEL RETURN TUBE SUB-ASSEMBLY
- Connect the fuel return tube (Refer to PRECAUTION [08/2015 - ]
).
- Connect the fuel return tube (Refer to PRECAUTION [08/2015 - ]
).
- CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
- Connect the fuel tank main tube (Refer to PRECAUTION [08/2015 - ]
).
- Connect the fuel tank main tube (Refer to PRECAUTION [08/2015 - ]
).
- INSTALL NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
- for Half Cover Type:
Install the No. 1 fuel tank protector with the 4 bolts.
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
- for Standard Type:
Install the No. 1 fuel tank protector with the 6 bolts.
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
- for Half Cover Type:
- INSTALL REAR FLOOR SERVICE HOLE COVER
- Connect the fuel pump and fuel sender gauge connector.
- Install the rear floor service hole cover with the 3 screws.
- INSTALL REAR SEAT ASSEMBLY LH
- for 60/40 Split Double-folding Seat Type LH Side:
Install the rear seat assembly LH (Refer to INSTALLATION [08/2015 - ] ).
- for 60/40 Split Slide Walk-in Seat Type LH Side:
Install the rear seat assembly LH (Refer to INSTALLATION [08/2015 - ] ).
- for 60/40 Split Double-folding Seat Type LH Side:
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).
- INSPECT FOR FUEL LEAK
See step 7
