Starting System (Service Information): Starter: Removal: Procedure

  1. REMOVE STARTER
    1. Disconnect the negative battery cable.

      Refer to REMOVAL

    2. Remove the front under cover No. 2.

      Refer to REMOVAL

    3. Remove the terminal B cable.

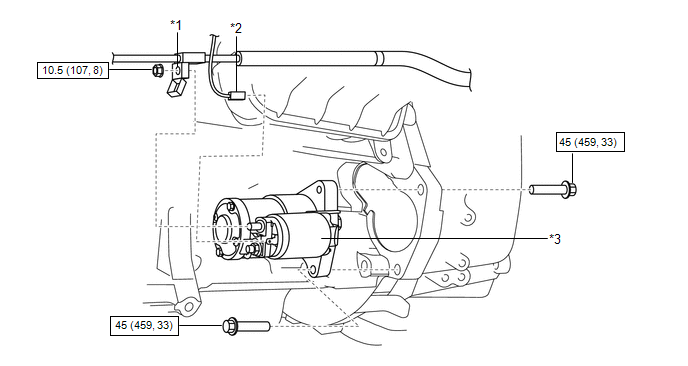

      GTY489879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Terminal B Cable *2 Terminal S Connector
      *3 Starter - -
      N*m (kgf*cm, ft.*lbf): Specified torque - -
    4. Remove the terminal s connector.
    5. Remove the starter.
