Fuel Injector: Removal: Procedure

1. Remove the high pressure fuel pipe.

   Refer to REMOVAL

2. Remove the fuel distributor.

HINT:

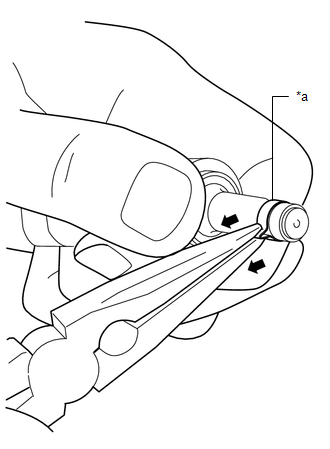

When removing the stopper ring, do not damage the fuel injector with the tool.

1. Remove the stopper ring as shown in the figure.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Stopper Ring

HINT:

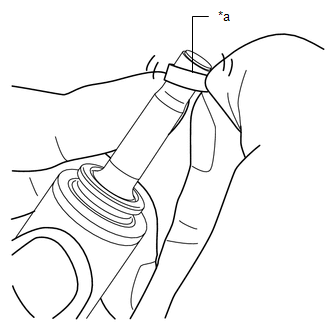

When stretching the teflon seal, do not damage the fuel injector with the tool.

1. Stretch the teflon seal as shown in the figure.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Teflon Seal

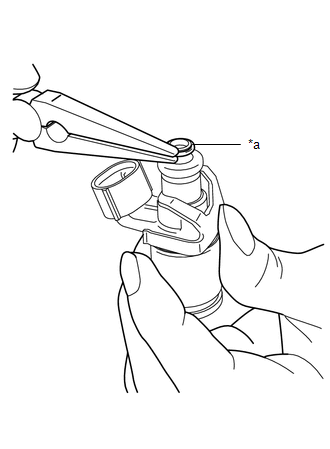

2. Remove the teflon seal as shown in the figure.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Teflon Seal

1. Complete the "BEFORE SERVICE PRECAUTION".

   Refer to PRECAUTION

2. Disconnect the negative battery cable.

   Refer to REMOVAL

3. Remove the plug hole plate.

   Refer to REMOVAL

4. Remove the intake manifold.

   Refer to REMOVAL

5. Remove the Fuel pressure sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Pressure Sensor Connector	*2	Fuel Injector Connector
   *3	Fuel Distributor	*4	Fuel Injector
   *5	Spacer	*6	Stopper Ring
   *7	O-ring	*8	Back-up Ring
   *9	Teflon Seal	-	-
   *a	Vehicle Front	-	-
   	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
   	Oil	-	-

6. Remove the fuel injector connector.
7. Remove the fuel distributor.

   See step  1

8. Remove the fuel injector.
9. Remove the spacer.
10. Remove the stopper ring.

    See step  2

11. Remove the O-ring.
12. Remove the back-up ring.
13. Remove the teflon seal.

    See step  3
