Starting System (Service Information): Starter: Disassembly: Procedure

  1. STARTER DISASSEMBLY
    1. Remove the magnetic switch.

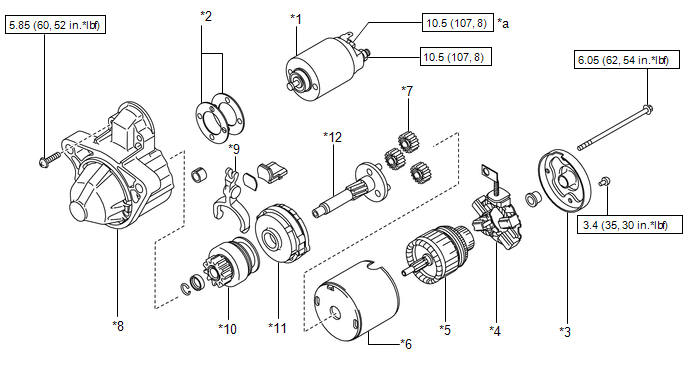

      GTY491619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Magnetic Switch *2 Adjustment Washer
      *3 Rear Housing *4 Brush and Brush Holder
      *5 Armature *6 Yoke
      *7 Planetary Gear *8 Front Cover
      *9 Lever *10 Drive Pinion
      *11 Internal Gear *12 Gear Shaft
      *a Terminal M Nut - -
      N*m (kgf*cm, ft.*lbf): Specified torque - -
    2. Remove the adjustment washer.
    3. Remove the rear housing.
    4. Remove the brush and brush holder.
    5. Remove the armature.
    6. Remove the yoke.
    7. Remove the planetary gear.
    8. Remove the front cover.
    9. Remove the lever.
    10. Remove the drive pinion.
    11. Remove the internal gear.
    12. Remove the gear shaft.
