Power Management Control Ecu: Removal: Procedure

  1. REMOVE POWER MANAGEMENT CONTROL ECU
    1. Disconnect the negative battery cable.

      Refer to PROCEDURE - Step 1

    2. Front scuff plate (LH).

      Refer to PROCEDURE - Step 1

    3. Front side trim (LH).

      Refer to PROCEDURE - Step 1

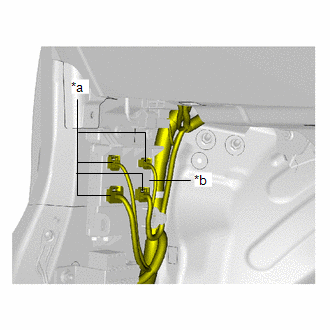

    4. Disconnect the connectors.
      GTY484946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector
      *b Power management control ECU

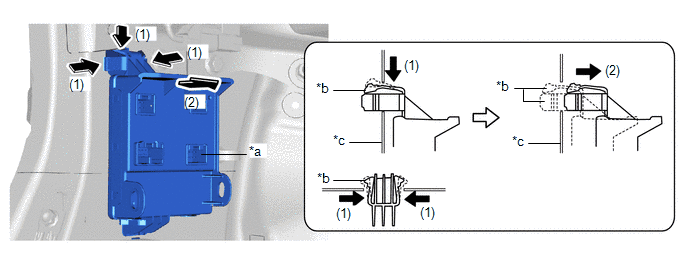

    5. While pressing the tabs of the power management control ECU in the direction of arrow (1) shown in the figure simultaneously, pull them in the direction of arrow (2) to detach the tabs from the body.
      GTY485242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Power management control ECU *b Tab
      *c Body - -

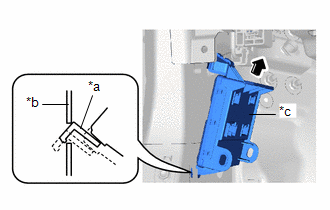

    6. Pull the power management control ECU in the direction of the arrow shown in the figure and detach the hook from the body.
      GTY486893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Body
      *c Power management control ECU

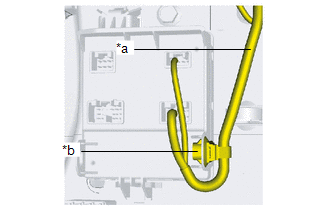

    7. Remove the vehicle wiring harness clip.
      GTY487869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Vehicle wiring harness
      *b Clip
    8. Remove the power management control ECU.
