Main Body Ecu Bracket: Installation: Procedure

INSTALL MAIN BODY ECU BRACKET

Install the vehicle wiring harness clip.

Install the screw.

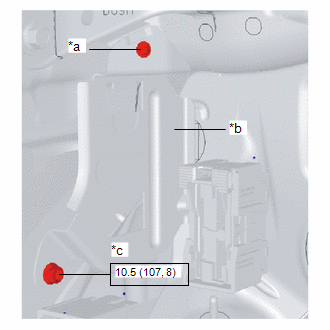

GTY488766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Screw
*b	Main body ECU bracket
*c	Bolt
	Nm (kgfcm, ft.*lbf): Specified torque

Install the bolt.
Torque: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)
Install the following parts:
1. Main body ECU.
  Refer to INSTALLATION
2. Driver-side lower panel.
  Refer to PROCEDURE - Step 1
3. Front side trim (LH).
  Refer to PROCEDURE - Step 1
4. Front scuff plate (LH).
  Refer to PROCEDURE - Step 1
Connect the negative battery cable.
Refer to PROCEDURE - Step 1
