Fuse Block: Removal: Procedure

  1. REMOVE FUSE BLOCK
    1. Disconnect the negative battery cable.

      Refer to PROCEDURE - Step 1

    2. Remove the front scuff plate (LH).

      Refer to PROCEDURE - Step 1

    3. Remove the front side trim (LH).

      Refer to PROCEDURE - Step 1

      NOTE:

      If the fuse block is removed with the fuses installed, the area around the fuse block may contact the fuses and damage the them. Before removing the fuse block, remove all the fuses.

    4. Remove all the fuses.

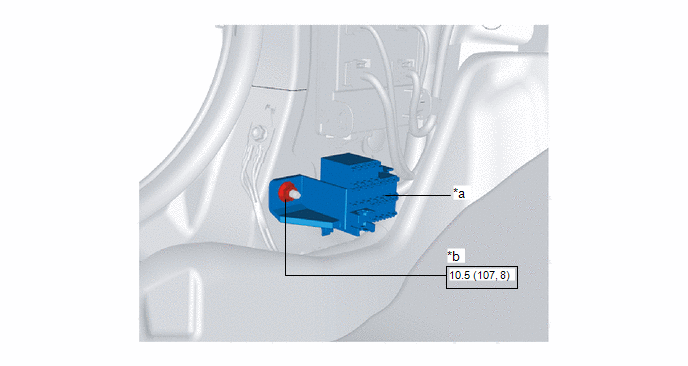

    5. Remove the nut.
      GTY493749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fuse block *b Nut
      N*m (kgf*cm, ft.*lbf): Specified torque - -

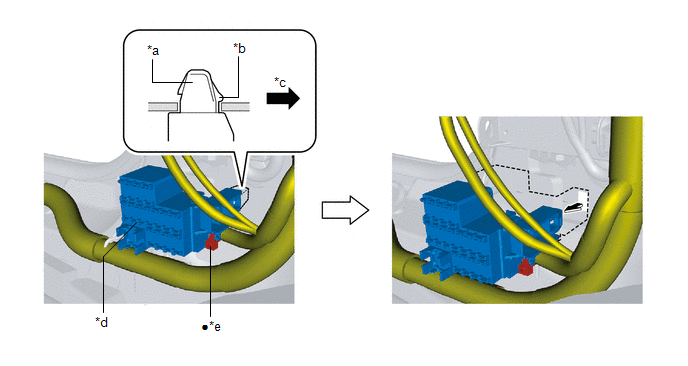

    6. Remove the fuse block clip from the body.
      GTY489804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip *b Tab
      *c Vehicle front *d Fuse block
      *e Band - -
      • Non-reusable part - -
    7. Cut the bands.
    8. Set the removed fuse block aside so that it does not scratch the vehicle and parts.
