Front Wiring Harness Protector: Removal: Procedure

  1. REMOVE FRONT WIRING HARNESS PROTECTOR
    1. Disconnect the negative battery cable.

      Refer to PROCEDURE - Step 1

    2. Remove the air cleaner assembly.

      Refer to PROCEDURE - Step 1

    3. Remove the battery and the battery tray.

      Refer to REMOVAL

    4. While pressing the clip tabs of front wiring harness protector in the direction of the arrows (1) shown in the figure, pull the clip of front wiring harness protector in the direction of the arrow (2) shown in the figure to detach the clip tabs of front wiring harness protector from the engine mount.
      GTY485543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tab *b Front wiring harness protector
      *c Engine mount *d Clip
    5. Pull out the clip from the engine mount.
    6. Pull out the cap of front wiring harness protector in the direction of the arrow shown in the figure.
      GTY493407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front wiring harness protector *b Cap
      *c Stud bolt - -
    7. Pull out the front wiring harness protector from the stud bolt.
    8. While pressing the clip tabs in the direction of the arrows (1) shown in the figure, push out the clip in the direction of the arrow (2) shown in the figure to detach the clip tabs from the front wiring harness protector.

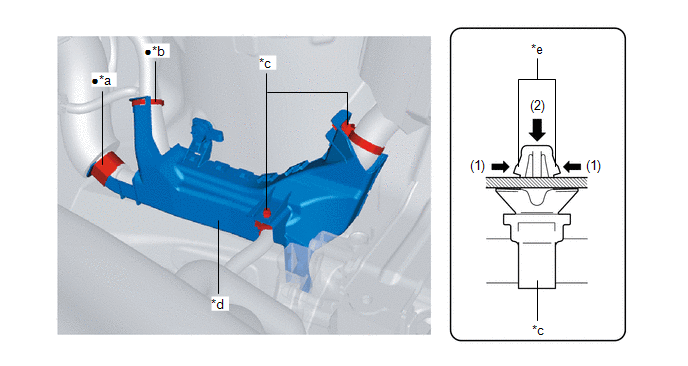

      GTY484923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tape *b Band
      *c Clip *d Front wiring harness protector
      *e Tab - -
      • Non-reusable part - -
    9. Pull out the clips from the front wiring harness protector.
    10. Cut the bands.
    11. Remove the tapes.
    12. While lifting up the hook using a tape-wrapped flathead screwdriver, pull the tab in the direction of the arrow shown in the figure to detach the tab from the hook.

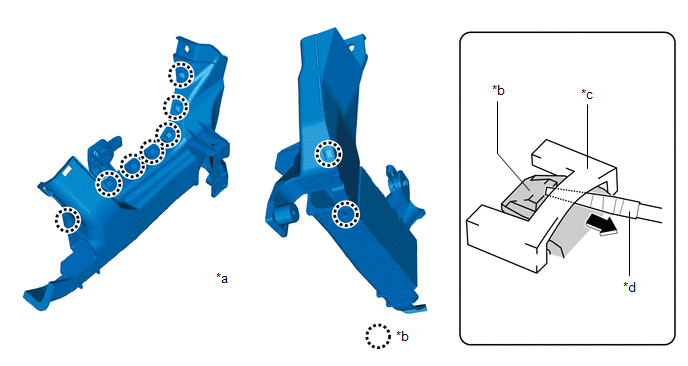

      GTY486376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front wiring harness protector *b Tab
      *c Hook *d Flathead screwdriver
    13. Detach all the tabs from the hooks.
    14. Remove the front wiring harness protector.
