Vehicle Stability Control System
>>
System Diagram
>>
System Diagram
System Diagram

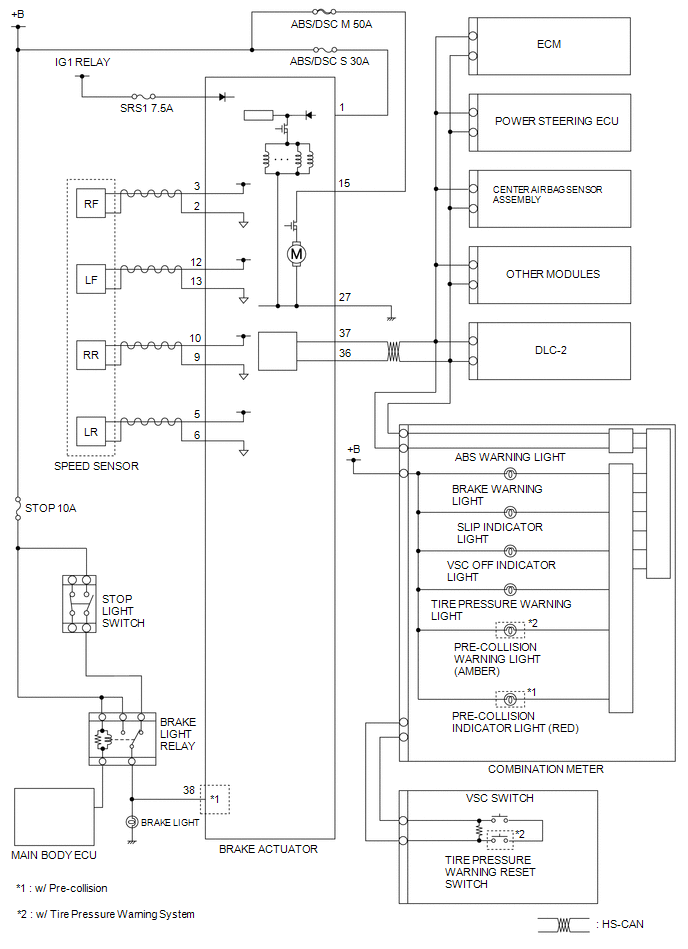

SYSTEM WIRING DIAGRAM [BRAKE ACTUATOR]
Fig 1: Vehicle Stability Control System Diagram (Brake Actuator)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
