Parts Location: Illustration

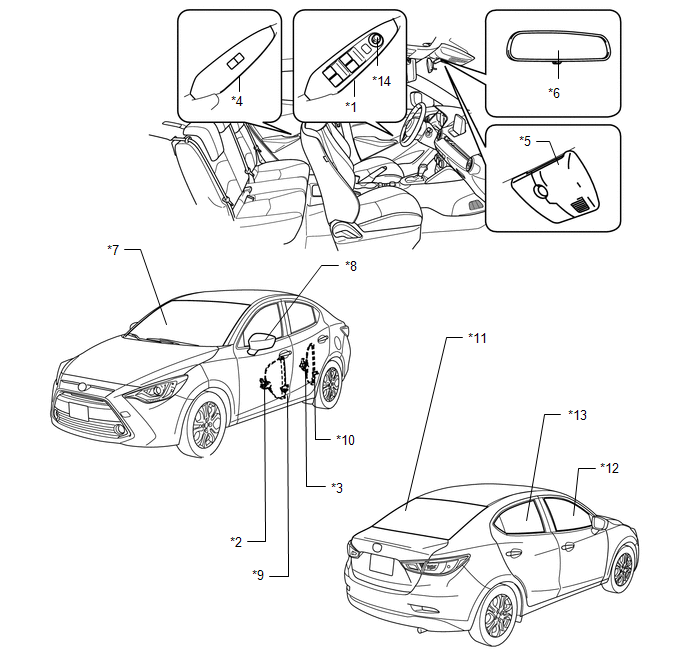

| *1 | Power Window Master Switch | *2 | Power Window Regulator Motor (For Front Door) |
| *3 | Power Window Regulator Motor (For Rear Door) | *4 | Rear Power Window Switch |
| *5 | Sensor Cover | *6 | Inner Rear View Mirror |
| *7 | Windshield Glass | *8 | Outer Rear View Mirror |
| *9 | Power Window Regulator (For Front) | *10 | Power Window Regulator (For Rear) |
| *11 | Rear Window Glass | *12 | Front Door Glass |
| *13 | Rear Door Glass | *14 | Outer Mirror Switch |

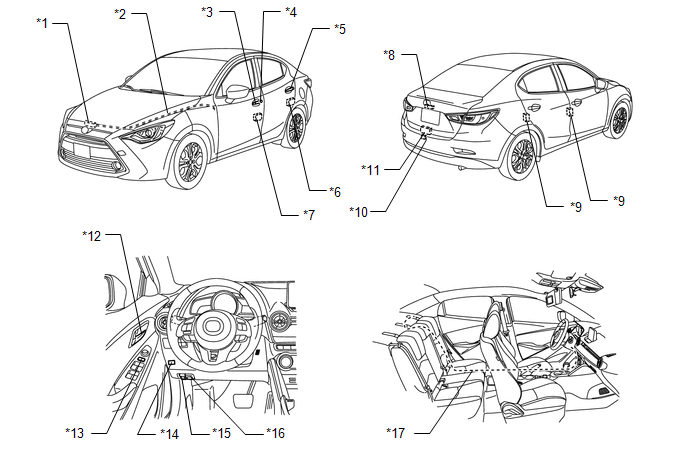

| *1 | Hood Latch | *2 | Hood Lock Control Cable |
| *3 | Front Outer Handle | *4 | Front Door Key Cylinder |
| *5 | Rear Outer Handle | *6 | Rear Door Lock |
| *7 | Front Door Lock | *8 | Trunk Lid Opener Switch (Vehicle Interior) |
| *9 | Door Lock Striker | *10 | Trunk Lid Lock Striker |
| *11 | Luggage Compartment Door Lock | *12 | Inner Handle |
| *13 | Door Lock Control Switch | *14 | Trunk Lid Opener Switch (Vehicle Exterior) |
| *15 | Fuel-Filler Lid Opener And Lever | *16 | Hood Lock Control Cable Assembly |
| *17 | Fuel Lid Lock Control Cable Assembly | - | - |
| *1 | Side Turn Signal Light Assembly | *2 | Headlight Assembly |
| *3 | Back-Up Light Switch | *4 | Rear Combination Light Assembly |
| *5 | License Plate Light Assembly | *6 | High Mount Stop Light Assembly |
| *7 | Rear Light Assembly | - | - |

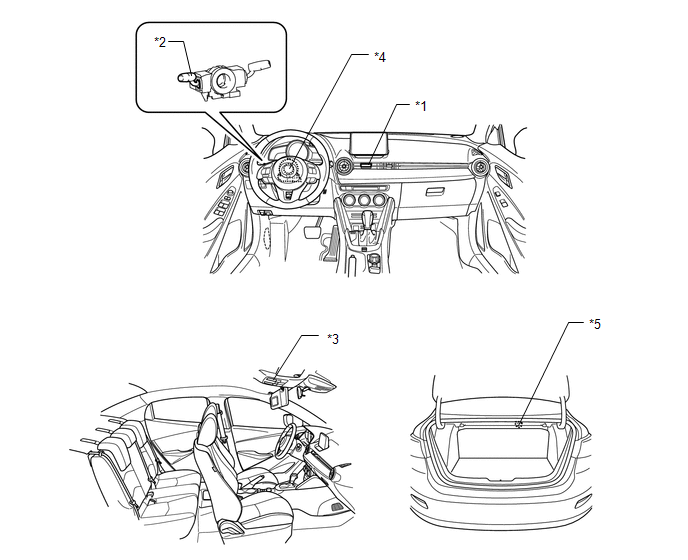

| *1 | Hazard Warning Switch | *2 | Headlight Dimmer Switch |
| *3 | Personal Light | *4 | Steering Angle Sensor |
| *5 | Luggage Compartment Light Bulb |

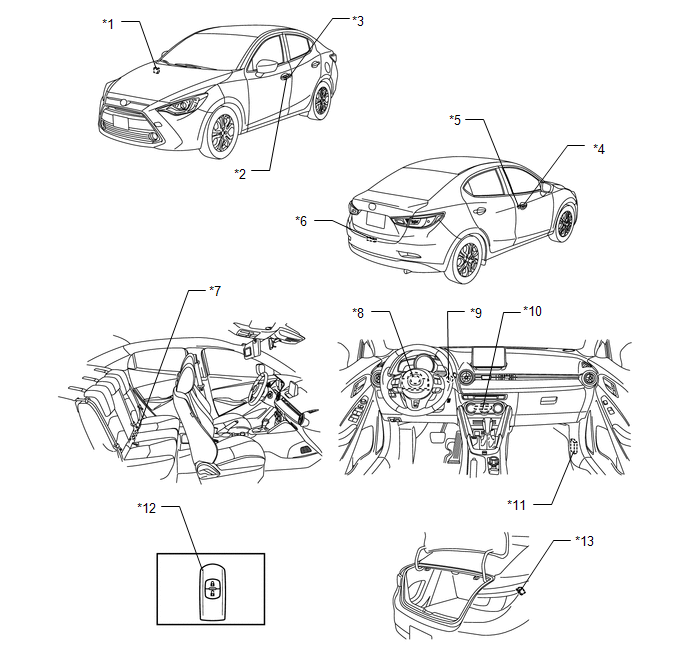

| *1 | Wireless Door Lock Buzzer | *2 | Electrical Key Oscillator (Exterior, LF) |
| *3 | Entry Lock And Unlock Switch (LF) | *4 | Electrical Key Oscillator (EXTERIOR, RF) |
| *5 | Entry Lock And Unlock Switch (RF) | *6 | Electrical Key Oscillator (Exterior, Rear) |
| *7 | Electrical Key Oscillator (Interior, Rear) | *8 | Engine Stop And Start ECU |
| *9 | Engine Switch | *10 | Electrical Key Oscillator (Interior, Front) |
| *11 | Certification ECU | *12 | Door Control Transmitter |
| *13 | Door Lock Receiver | - | - |

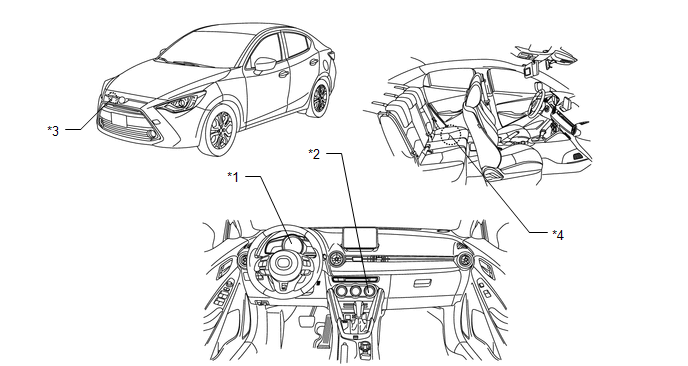

| *1 | Combination Meter | *2 | Hazard Flasher |
| *3 | Horn | *4 | Fuel Sender Gauge Assembly |
