System Diagrams

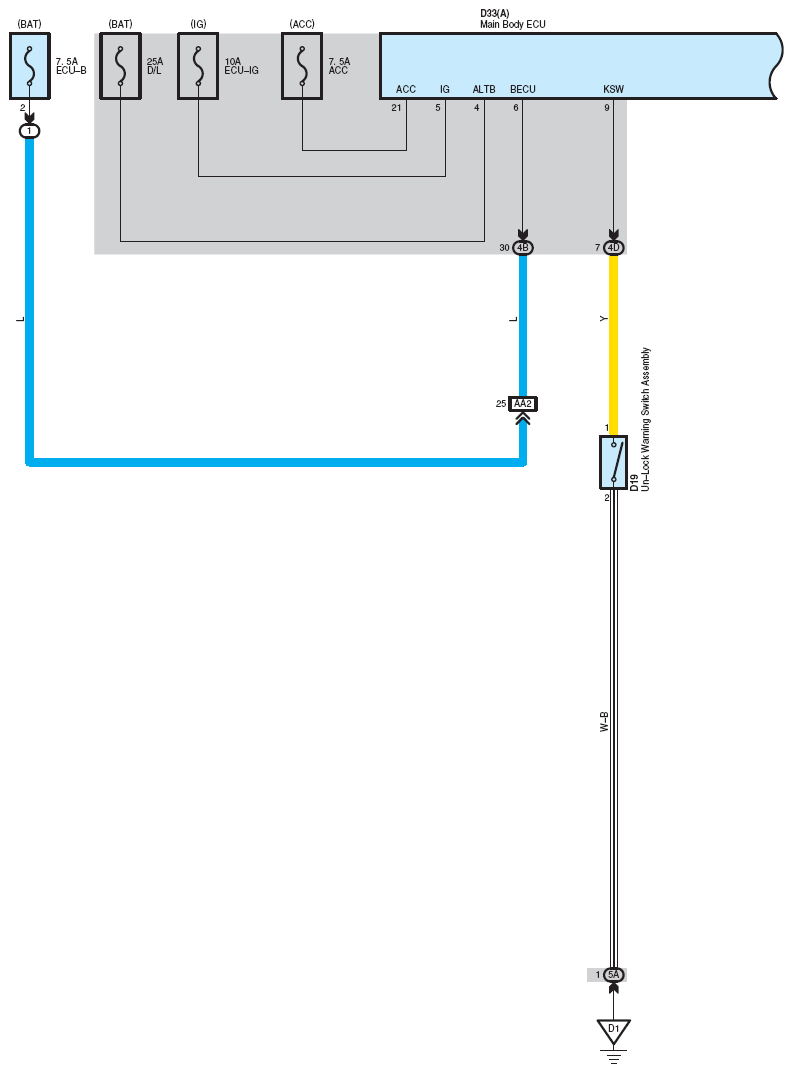

Fig 1: Wireless Door Lock Control - Sedan (1 Of 5)
G12220290

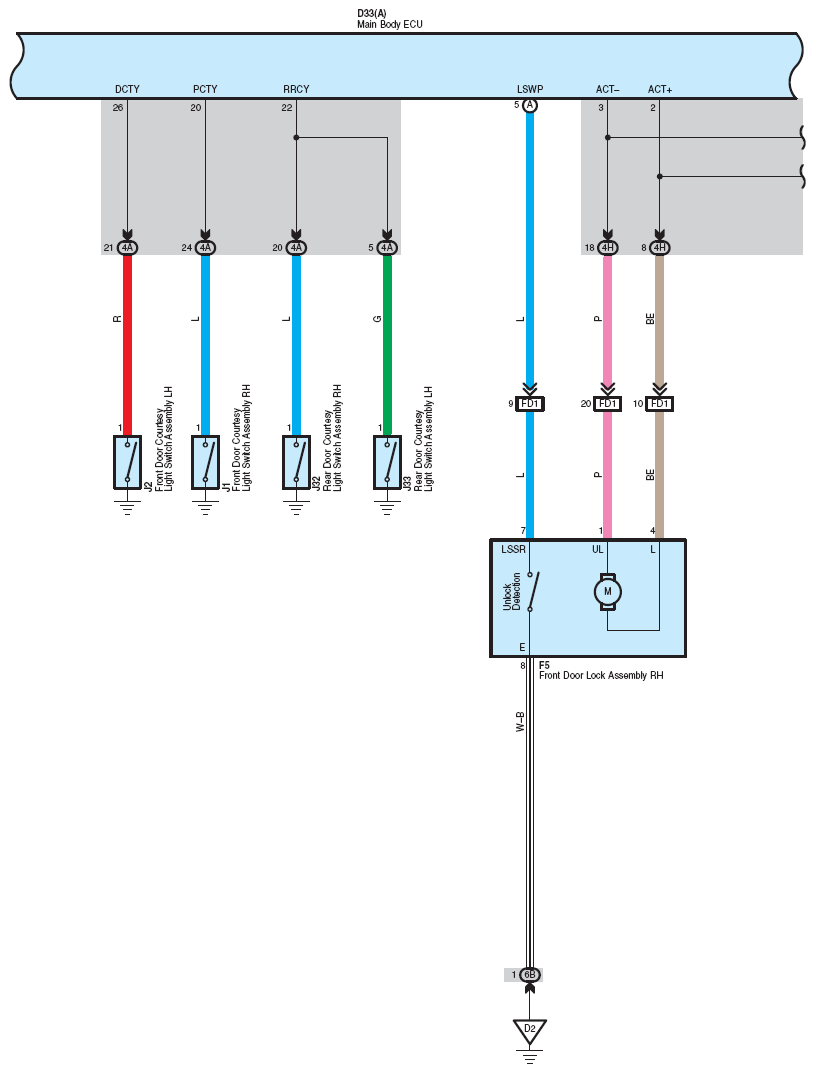

Fig 2: Wireless Door Lock Control - Sedan (2 Of 5)
G12220291

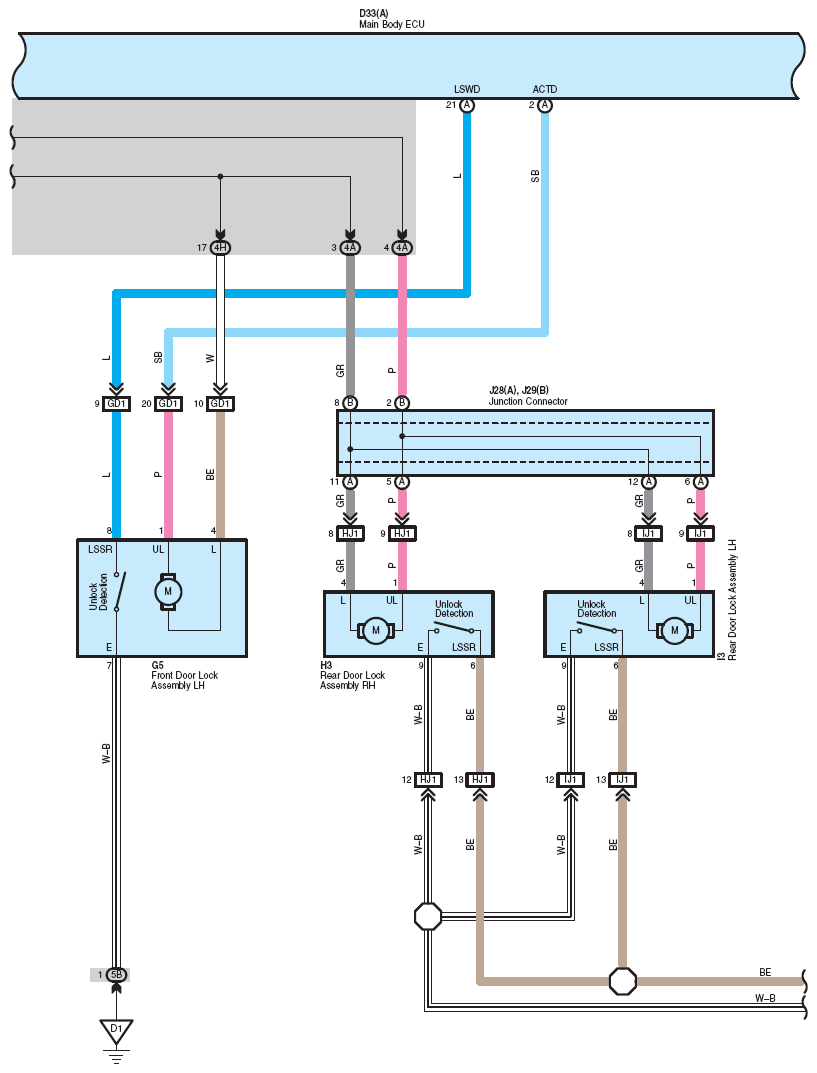

Fig 3: Wireless Door Lock Control - Sedan (3 Of 5)
G12220292

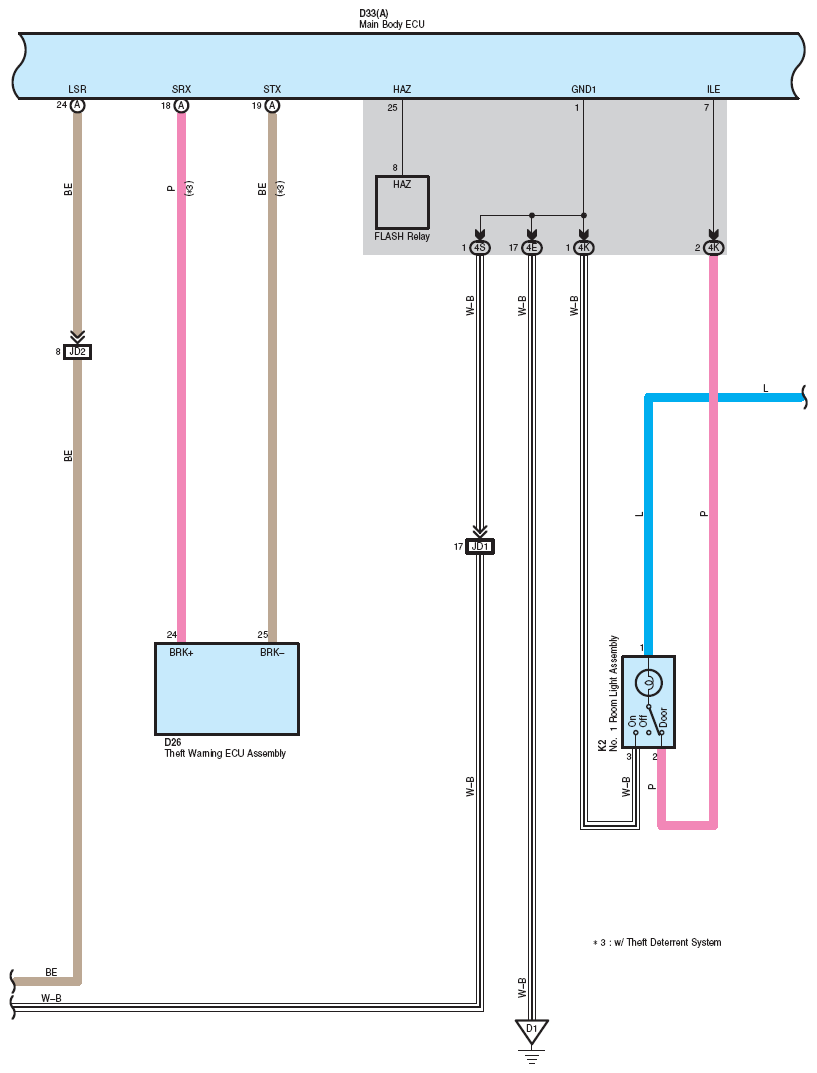

Fig 4: Wireless Door Lock Control - Sedan (4 Of 5)
G12220293

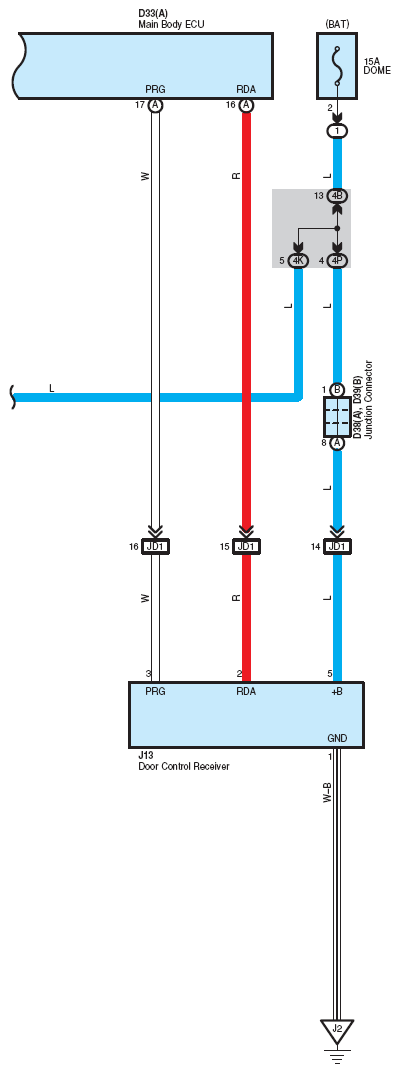

Fig 5: Wireless Door Lock Control - Sedan (5 Of 5)
G12220294
