System Diagrams

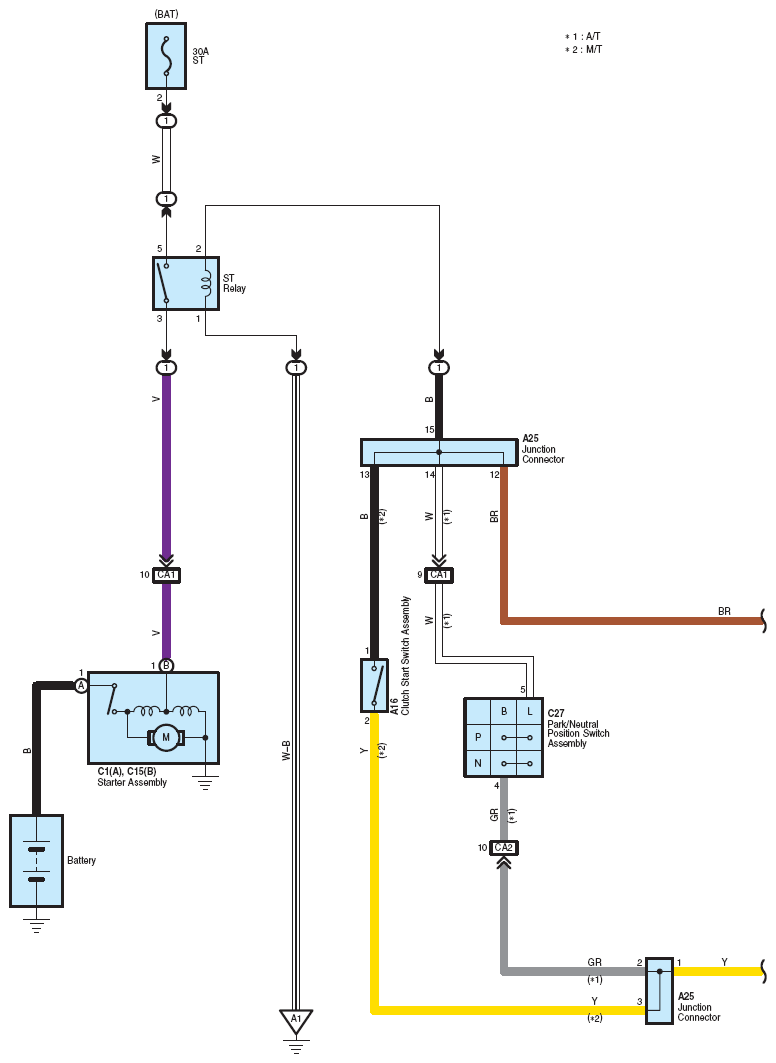

Fig 1: Starting - Sedan (1 Of 2)

G12220223

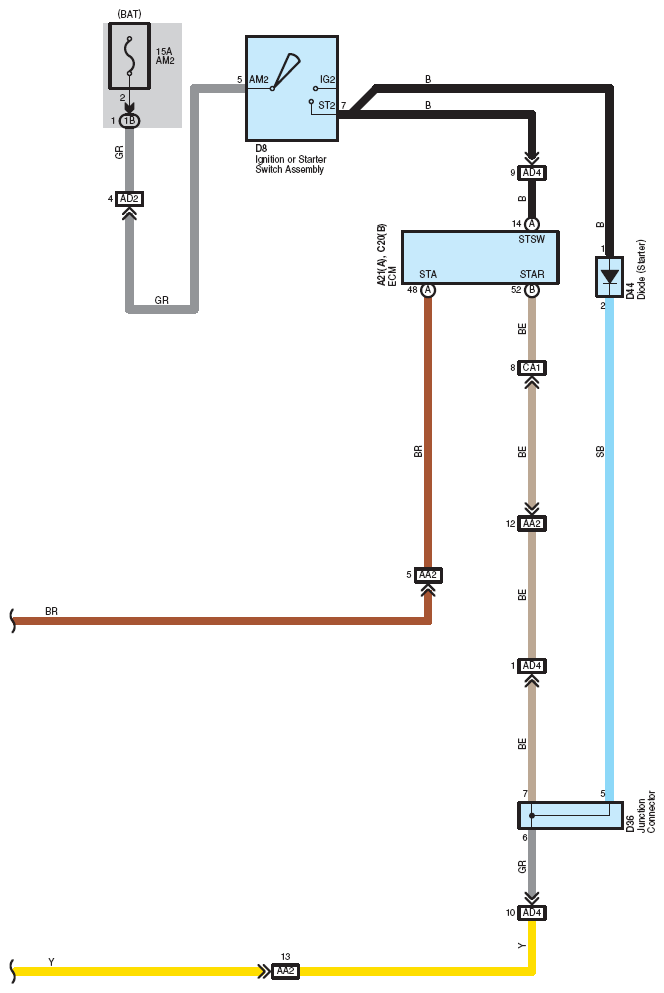

Fig 2: Starting - Sedan (2 Of 2)

G12220224
