System Diagrams

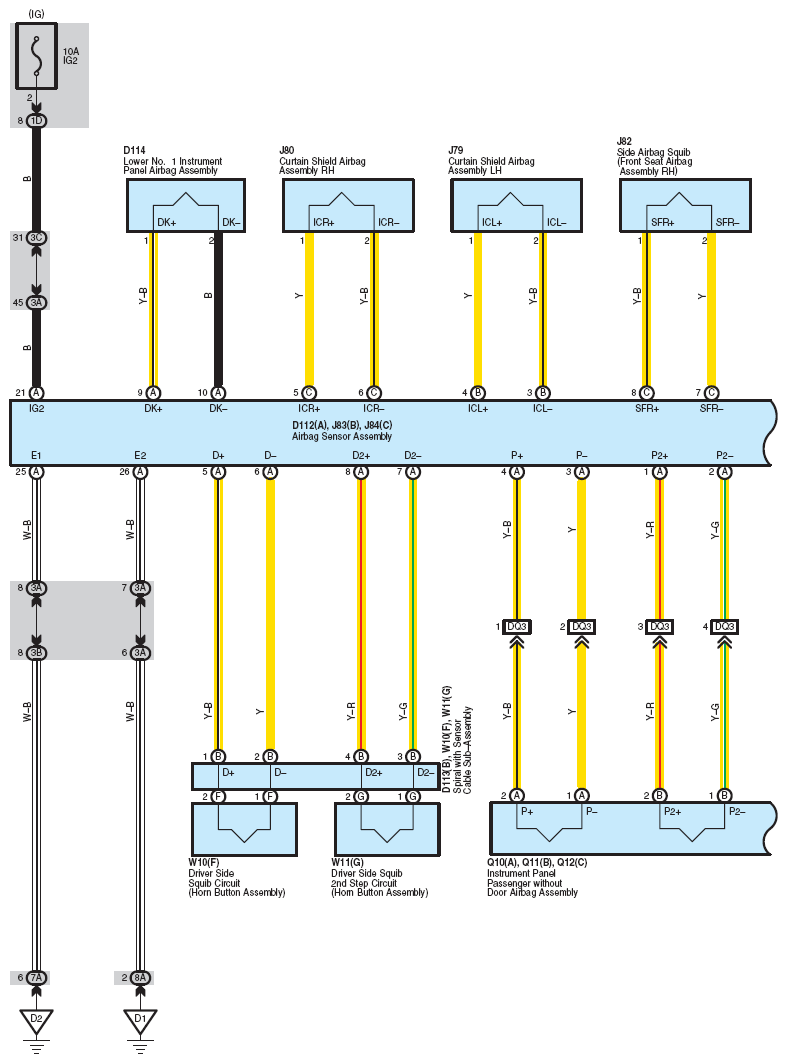

Fig 1: SRS - Hatchback (1 Of 6)

G12220200

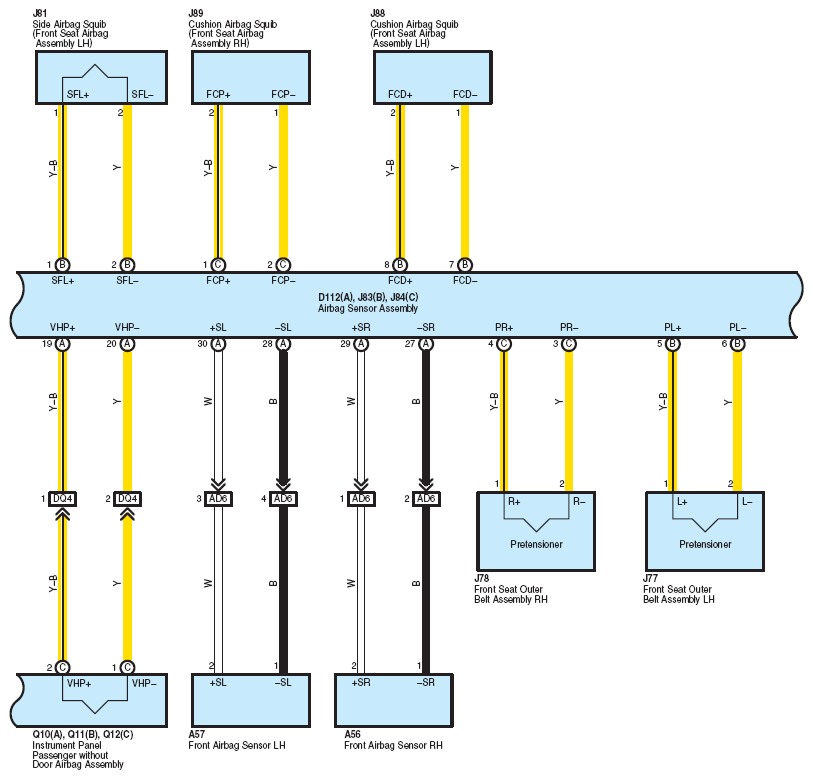

Fig 2: SRS - Hatchback (2 Of 6)

G12220201

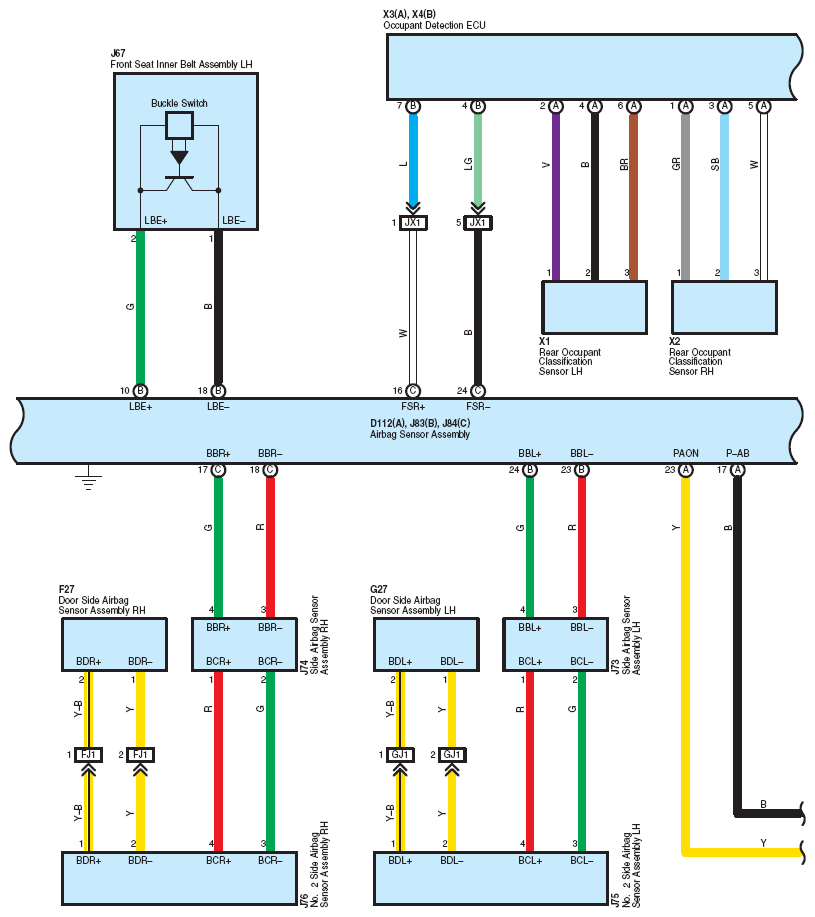

Fig 3: SRS - Hatchback (3 Of 6)

G12220202

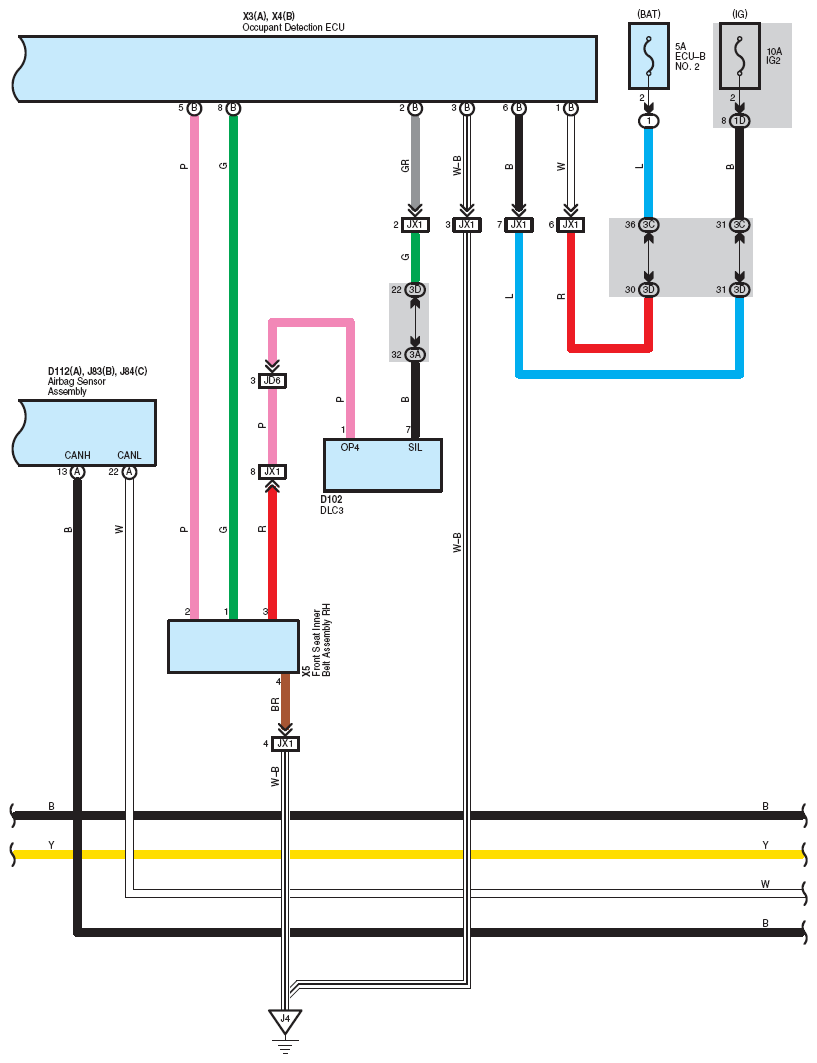

Fig 4: SRS - Hatchback (4 Of 6)

G12220203

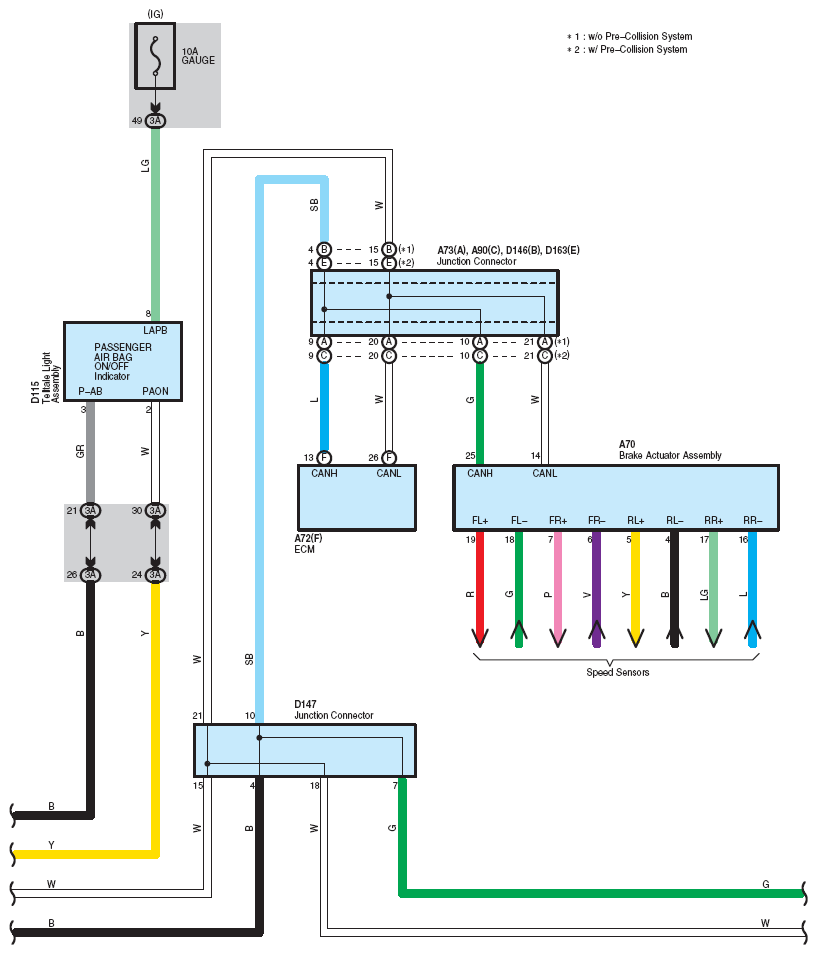

Fig 5: SRS - Hatchback (5 Of 6)

G12220204

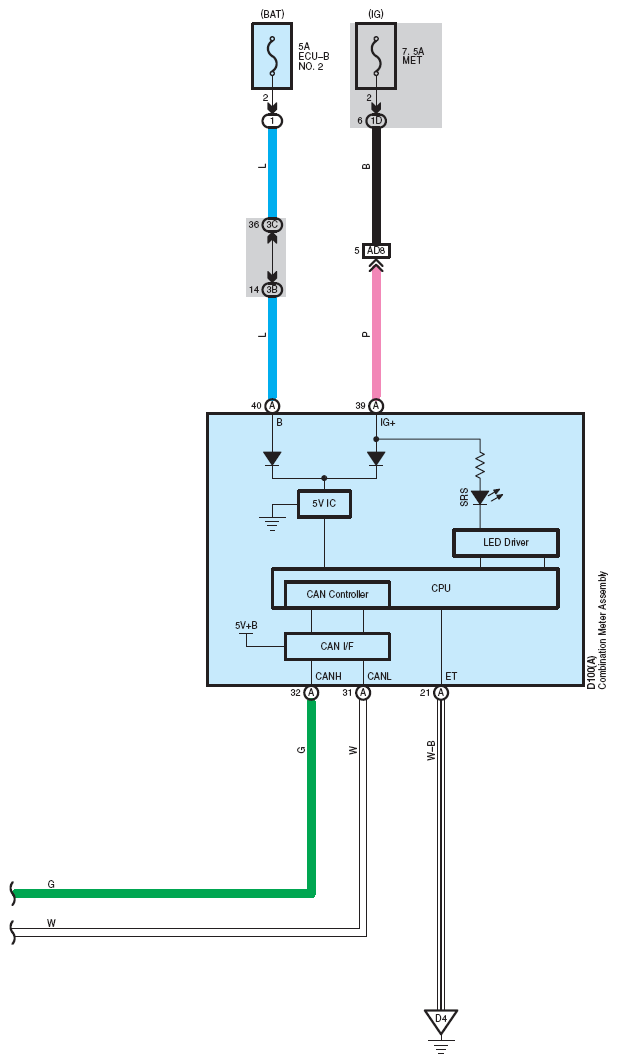

Fig 6: SRS - Hatchback (6 Of 6)

G12220205
