SRS - Hatchback: Connectors

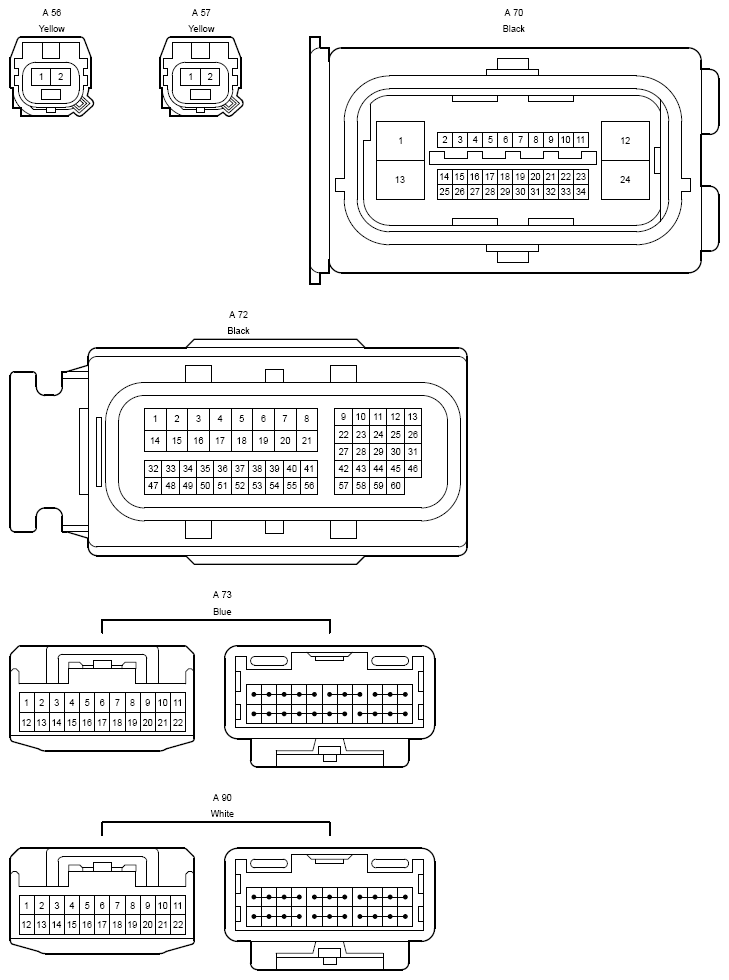

Fig 1: Connectors (1 Of 5)

G12220206

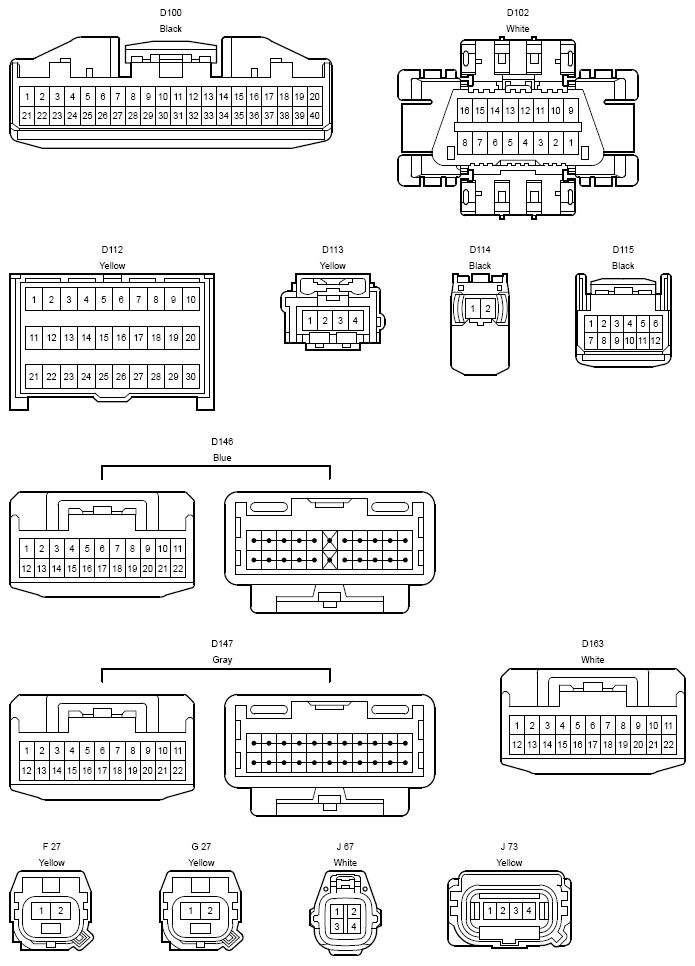

Fig 2: Connectors (2 Of 5)

G12220207

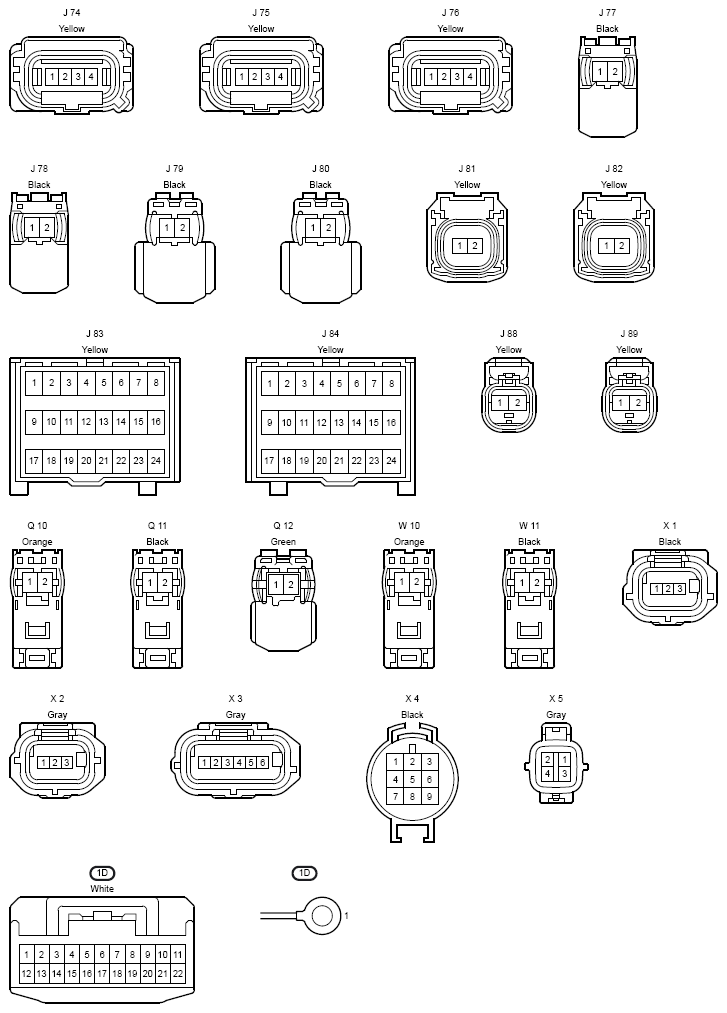

Fig 3: Connectors (3 Of 5)

G12220208

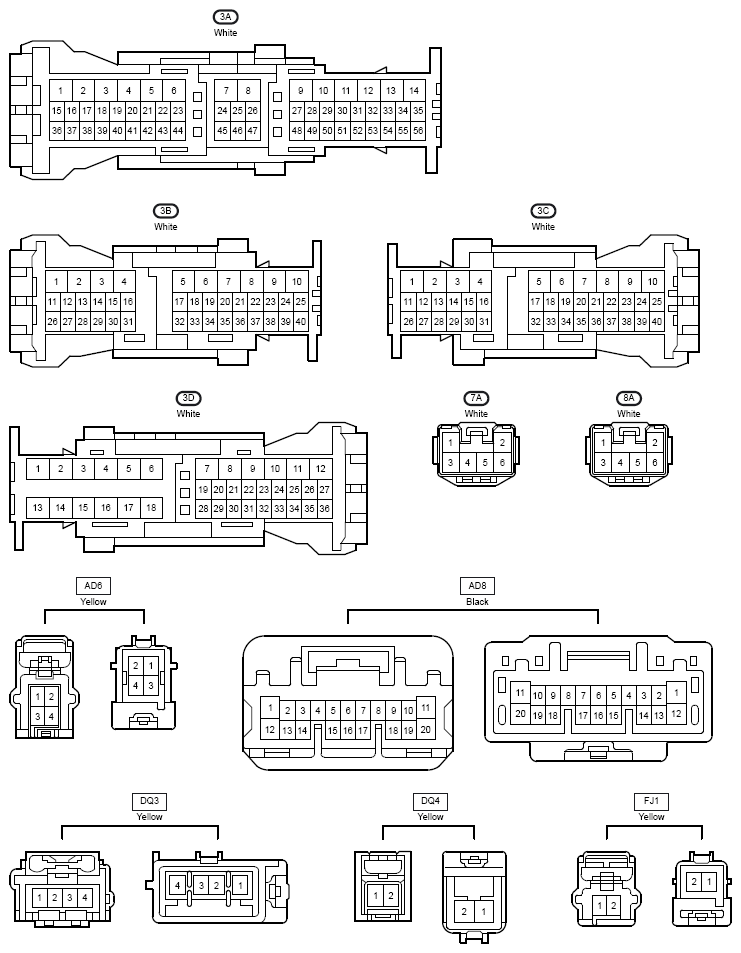

Fig 4: Connectors (4 Of 5)

G12220209

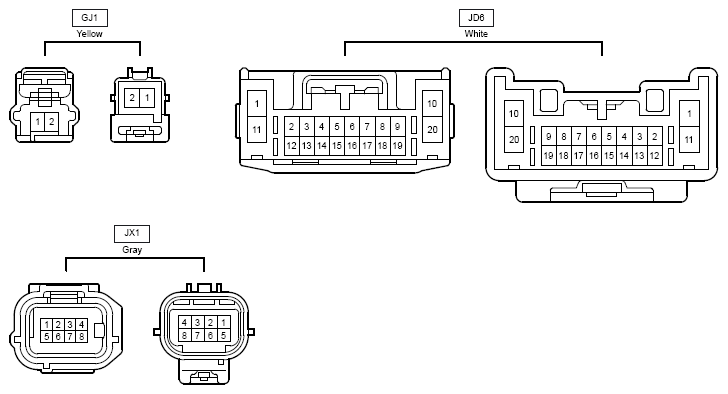

Fig 5: Connectors (5 Of 5)

G12220210
