System Diagrams

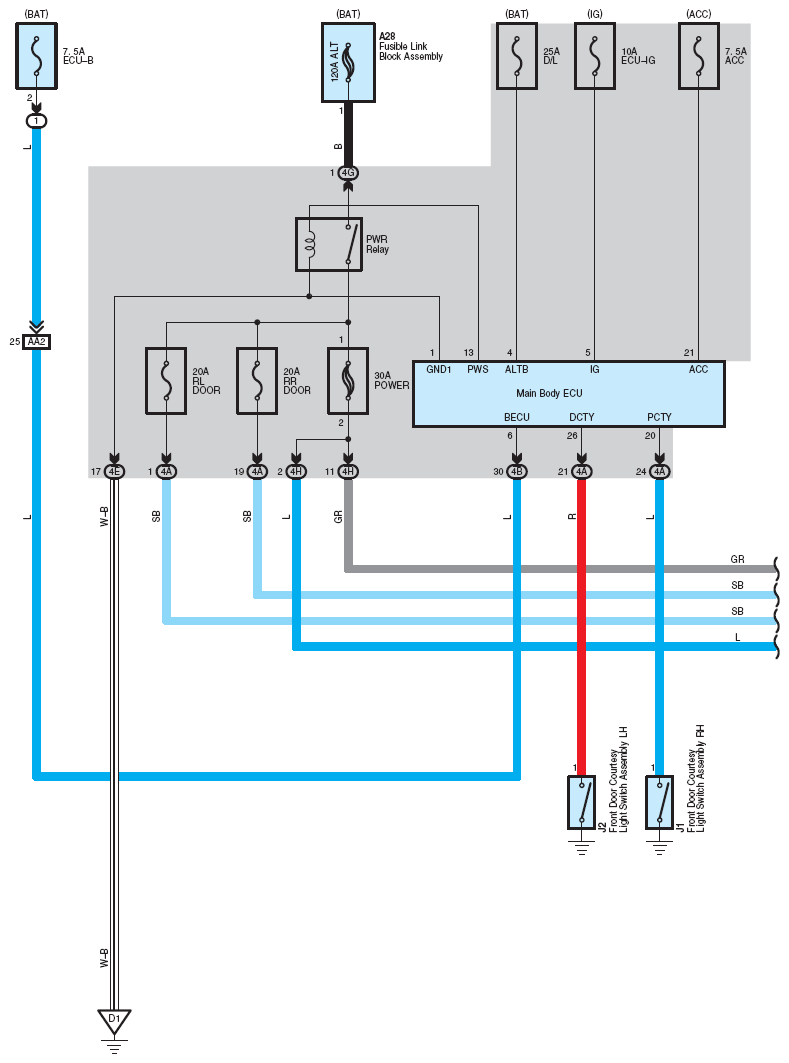

Fig 1: Power Window - Sedan (1 Of 3)

G12220154

Fig 2: Power Window - Sedan (2 Of 3)

G12220155

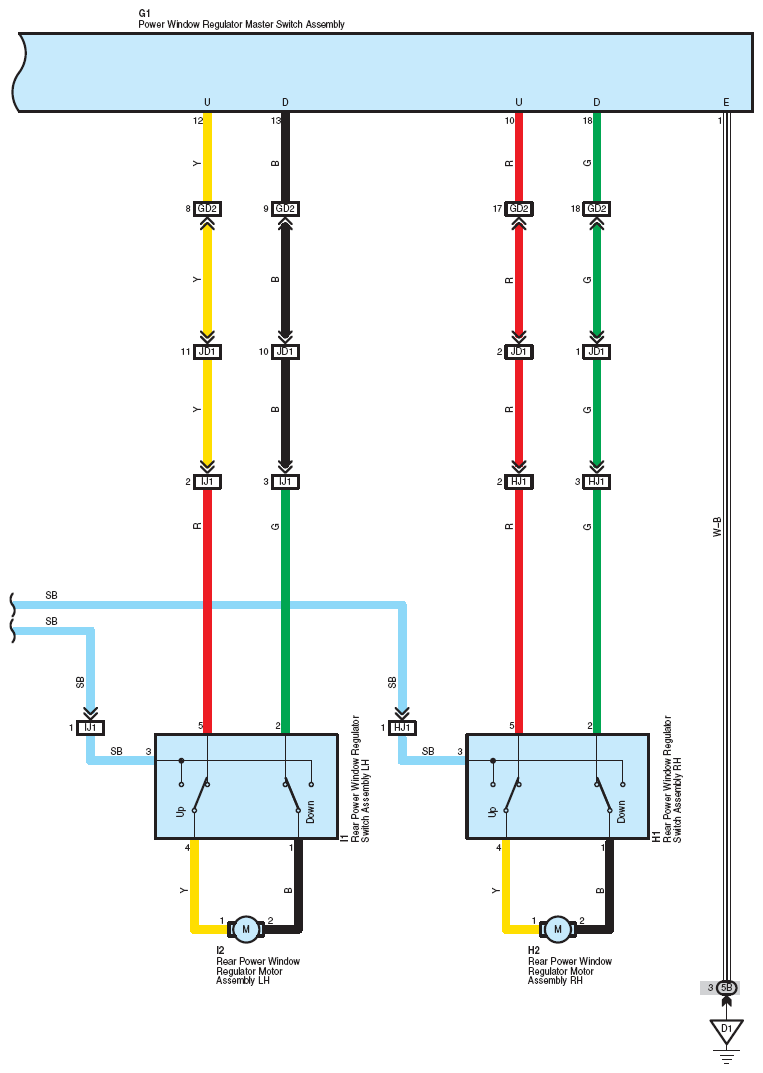

Fig 3: Power Window - Sedan (3 Of 3)

G12220156
