Power Window - Sedan: Connectors

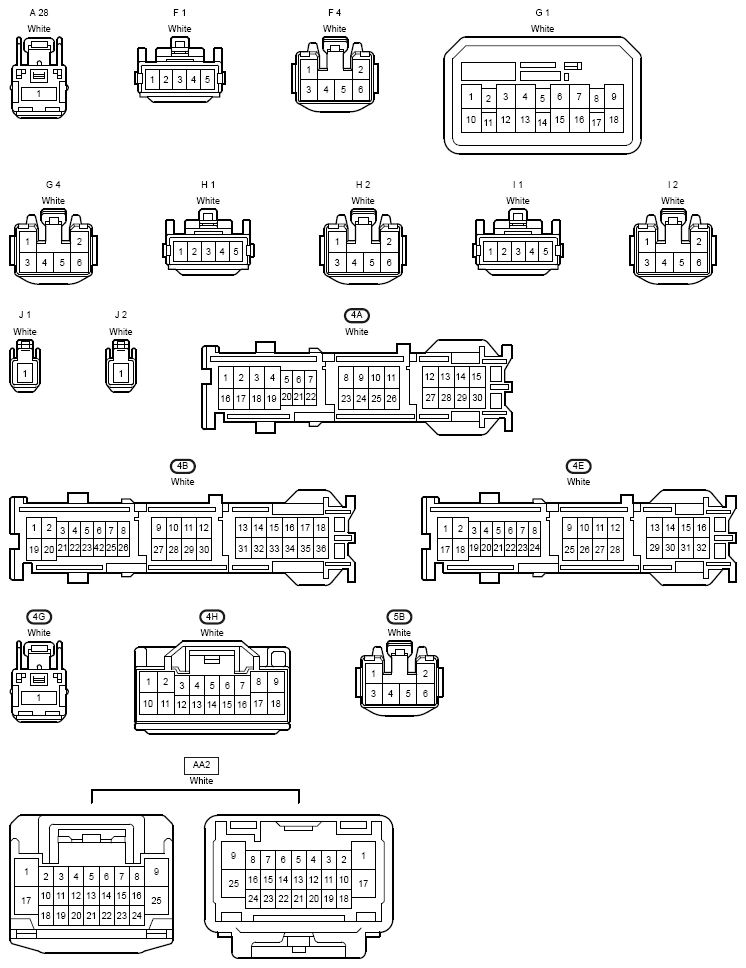

Fig 1: Connectors (1 Of 3)

G12220157

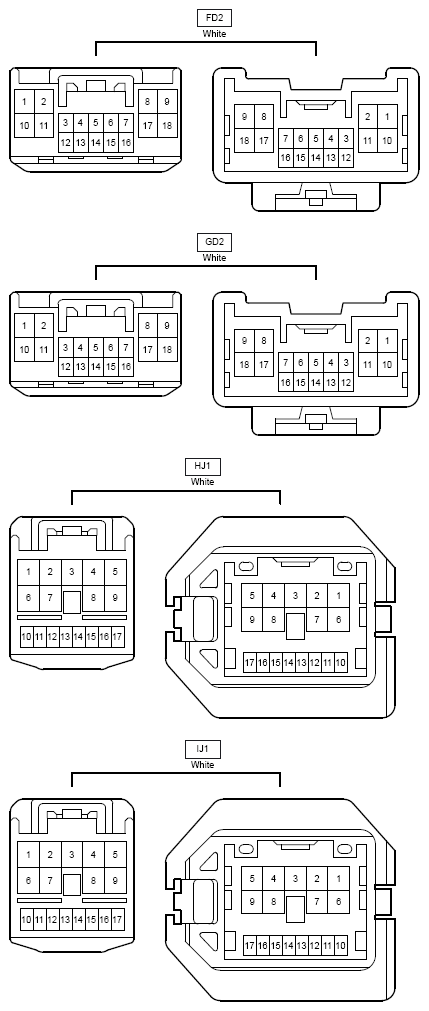

Fig 2: Connectors (2 Of 3)

G12220158

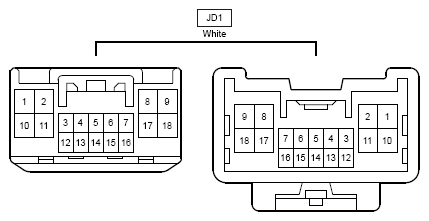

Fig 3: Connectors (3 Of 3)

G12220159
