System Diagrams

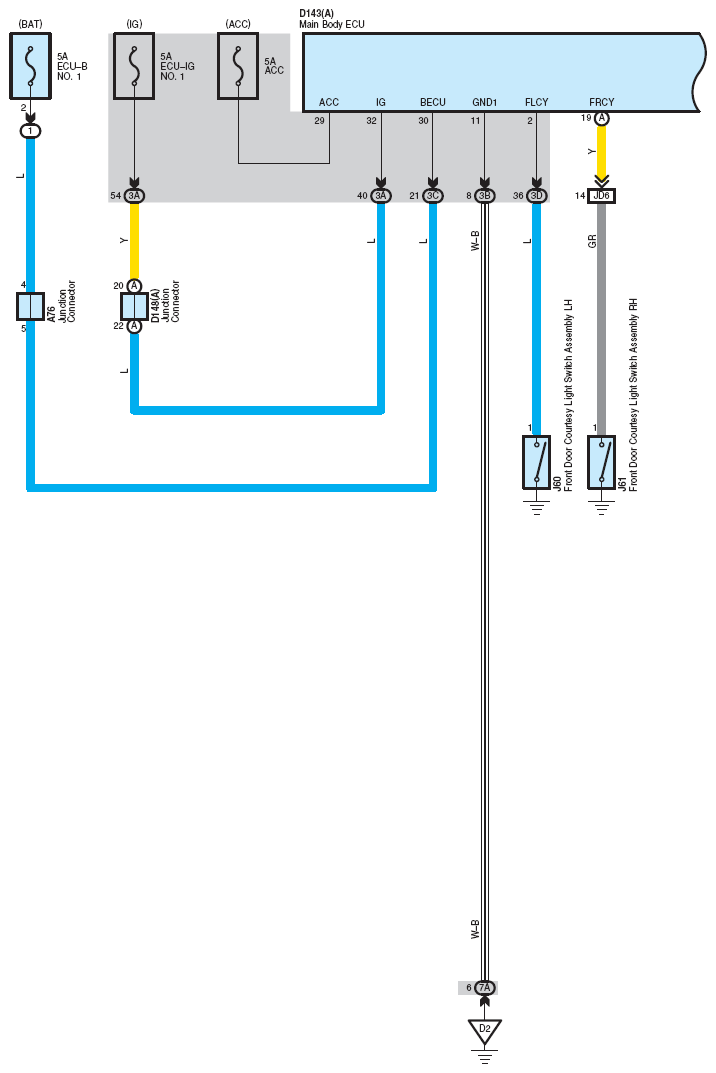

Fig 1: Power Window - Hatchback (1 Of 3)

G12220147

Fig 2: Power Window - Hatchback (2 Of 3)

G12220148

Fig 3: Power Window - Hatchback (3 Of 3)

G12220149
