System Diagrams

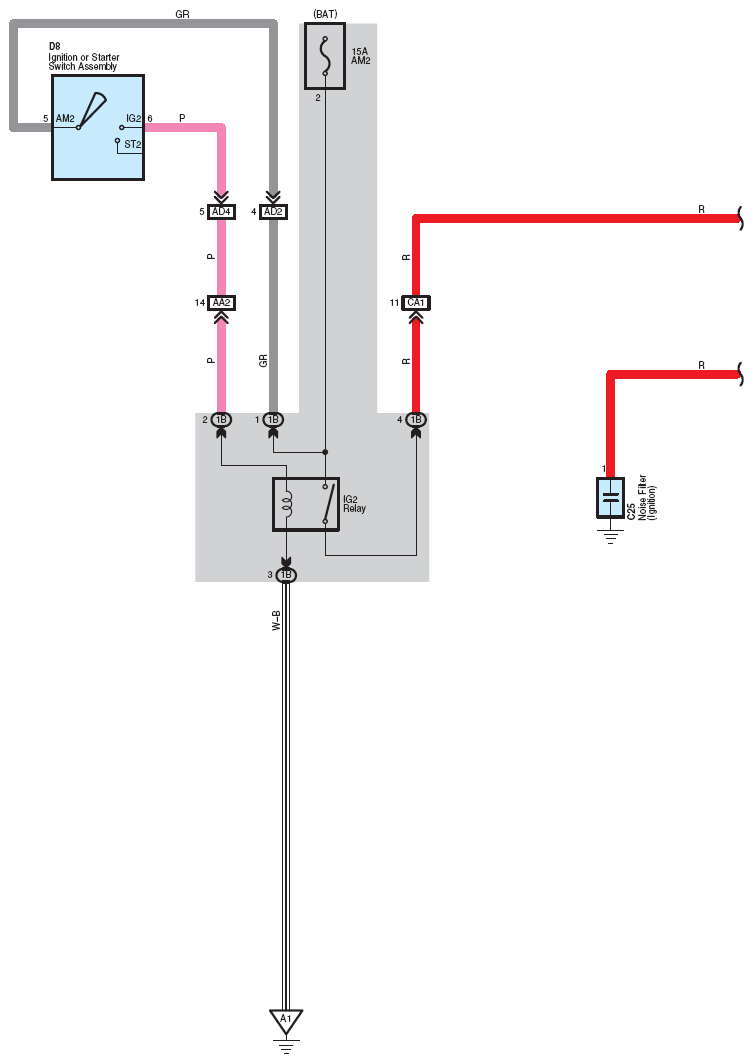

Fig 1: Ignition - Sedan (1 Of 2)

G12220093

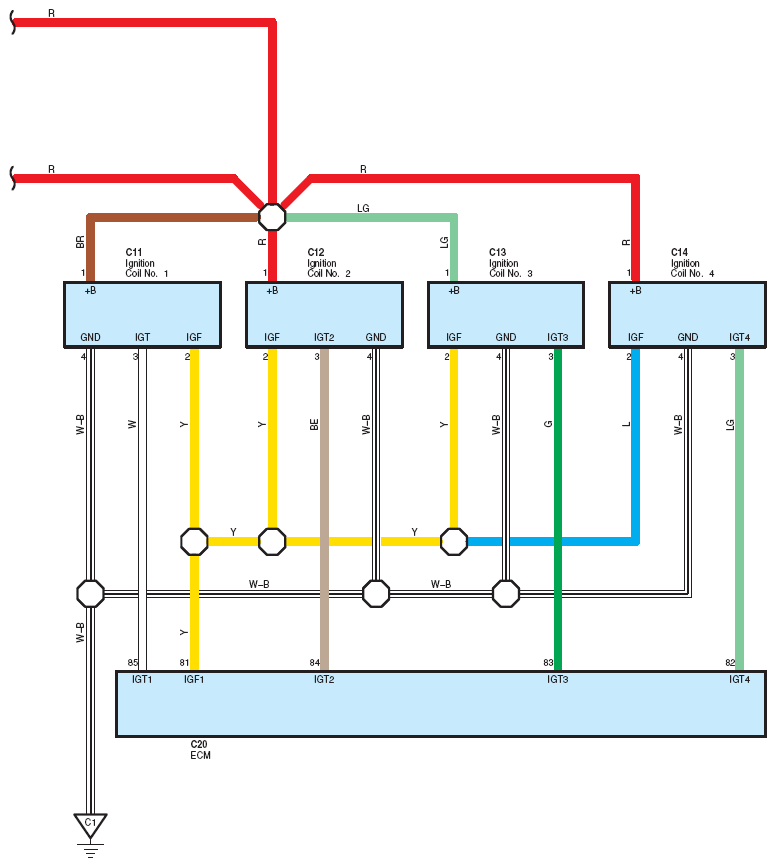

Fig 2: Ignition - Sedan (2 Of 2)

G12220094
